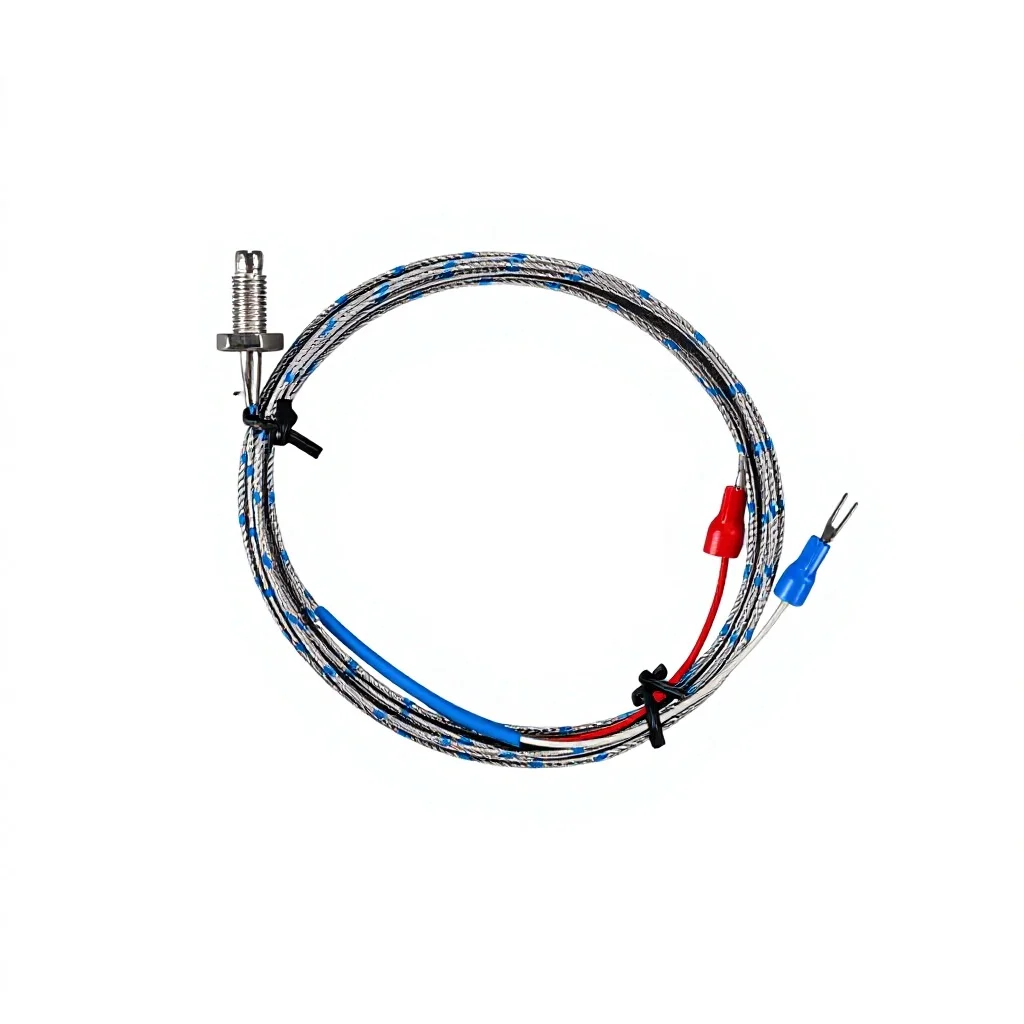

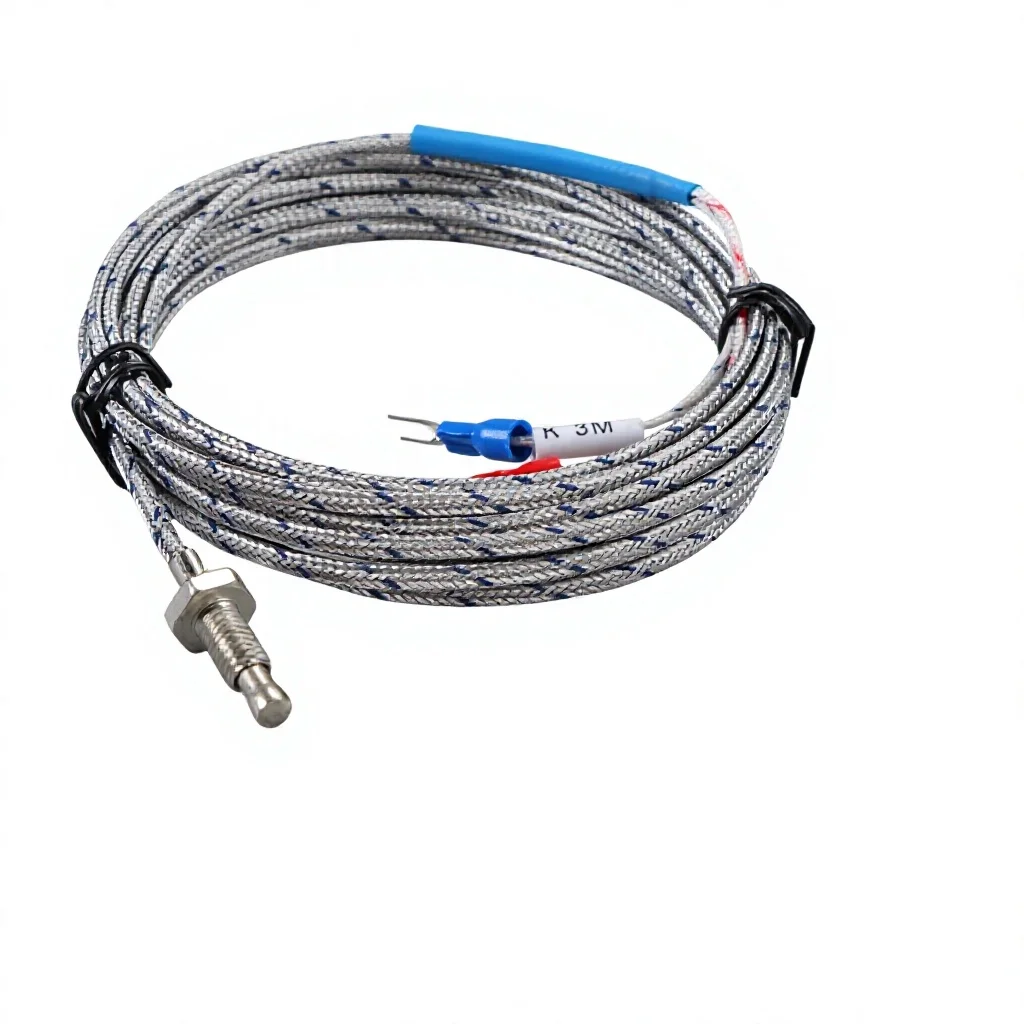

Factory M6/M8 Screw Type Thermocouple Sensor, Metric & UNC Thread Options 0.2-5m Custom Wire for Injection Molding Oven

Multi Thread Screw Specification, Global Compatibility 3 standard thread options: M6 Metric fine pitch, M6 UNC coarse pitch, M8 UNC coarse pitch, fit domestic and imported molds, heating barrel, extruder equipment, universal installation.
Fast Response Metal Sensing Head Solid metal screw sensing tip, good thermal conductivity, rapid temperature feedback, small measurement error, stable long-term industrial temperature monitoring.

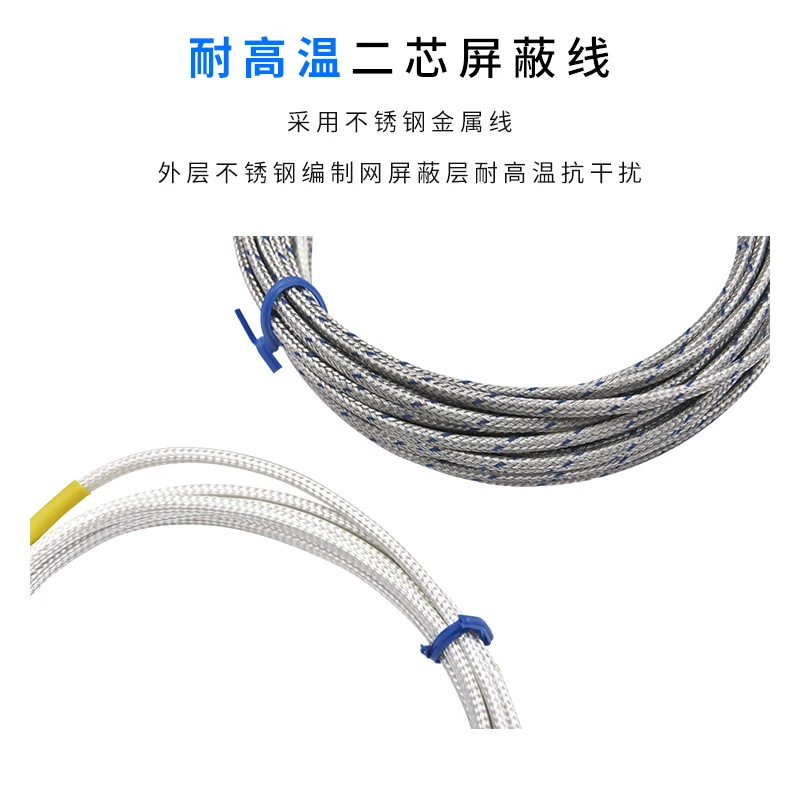

High Density Silver-plated Shielded Braided Cable Stainless steel woven outer layer + silver-plated inner wire, strong anti-electromagnetic interference, effectively eliminate signal drift caused by inverters and motors; high temperature resistant, wear-resistant, tensile durable.
Multiple Sensor Types Optional, Wide Application Support K thermocouple, E thermocouple, PT100 thermal resistance, measuring range 0~400℃, match all brands digital PID temperature controllers.
Customizable Cable Length Range Standard wire length from 0.2m to 5m, accept non-standard customized length to meet different equipment layout requirements.
Clear U-type Fork Terminal, Anti-miswiring Red positive pole, blue negative pole color marking U terminal, directly plug into temperature controller terminals, simple wiring, avoid positive and negative reverse connection failure.
Easy Screw-in Mount Structure Rotatable screw body, just thread into the measured metal surface, tight fit without air gap, simple installation and disassembly for maintenance.
Strict Automated Production & Quality Inspection Fully automatic weaving & welding production, each product passes temperature calibration test, stable linearity, consistent measuring accuracy batch by batch.
Wide Industrial Application Scenarios Perfect for plastic injection molding machines, heating ovens, extruders, boiler, CNC machine tools, packaging machinery, hot runner mold temperature measurement systems.
