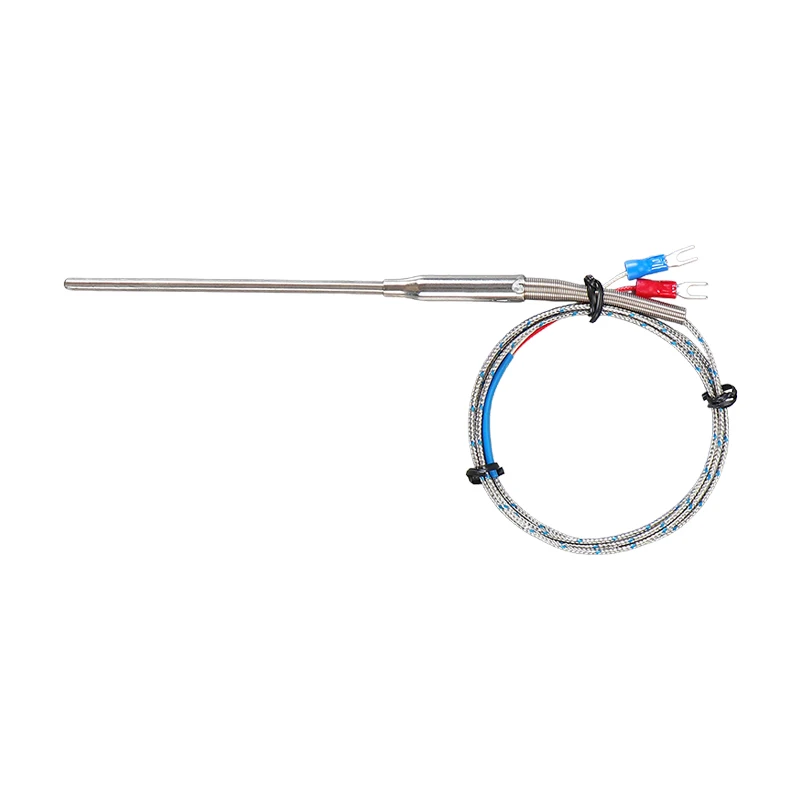

Flexible Mineral Insulated MI Thermocouple Probe K Type PT100 RTD Temperature Sensor 0.25-6mm Diameter High Temp Shielded Cable

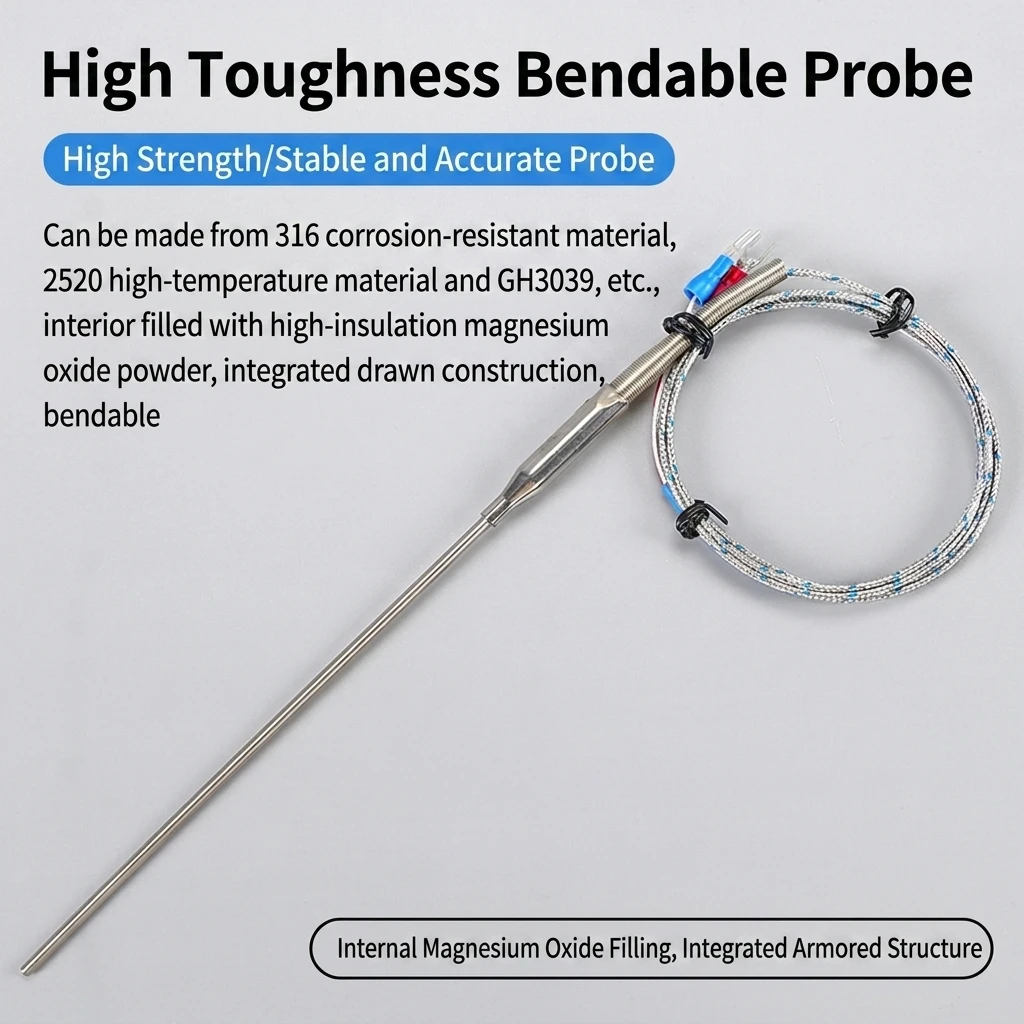

Bendable Mineral Insulated Sheath Probe Filled with high insulation magnesium oxide, the probe can be bent freely; optional 316 anti-corrosion, 2520 high temp, GH3039 alloy sheath for narrow high-temperature & corrosive space.

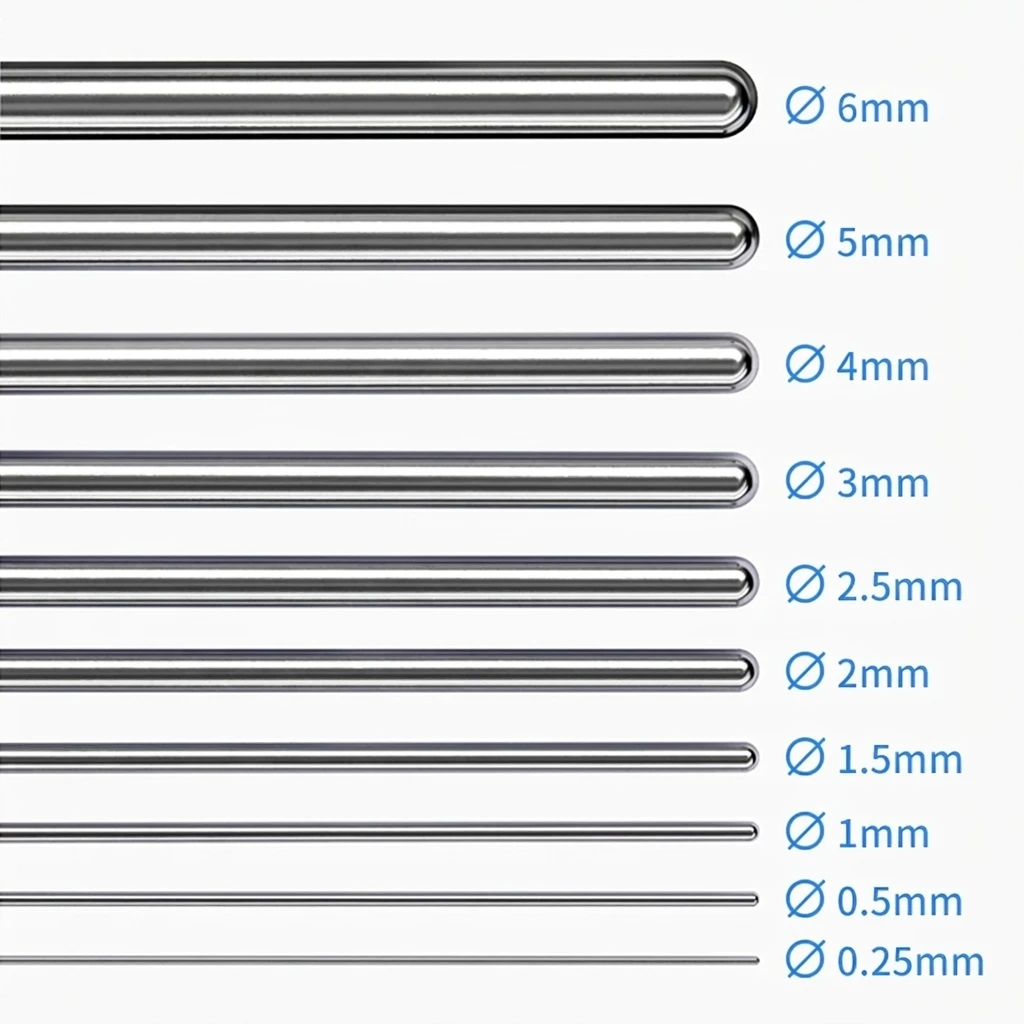

Full Range Probe Diameter Customizable 0.25~6mm standard diameters in stock, custom probe length available, fit all kinds of equipment mounting holes.

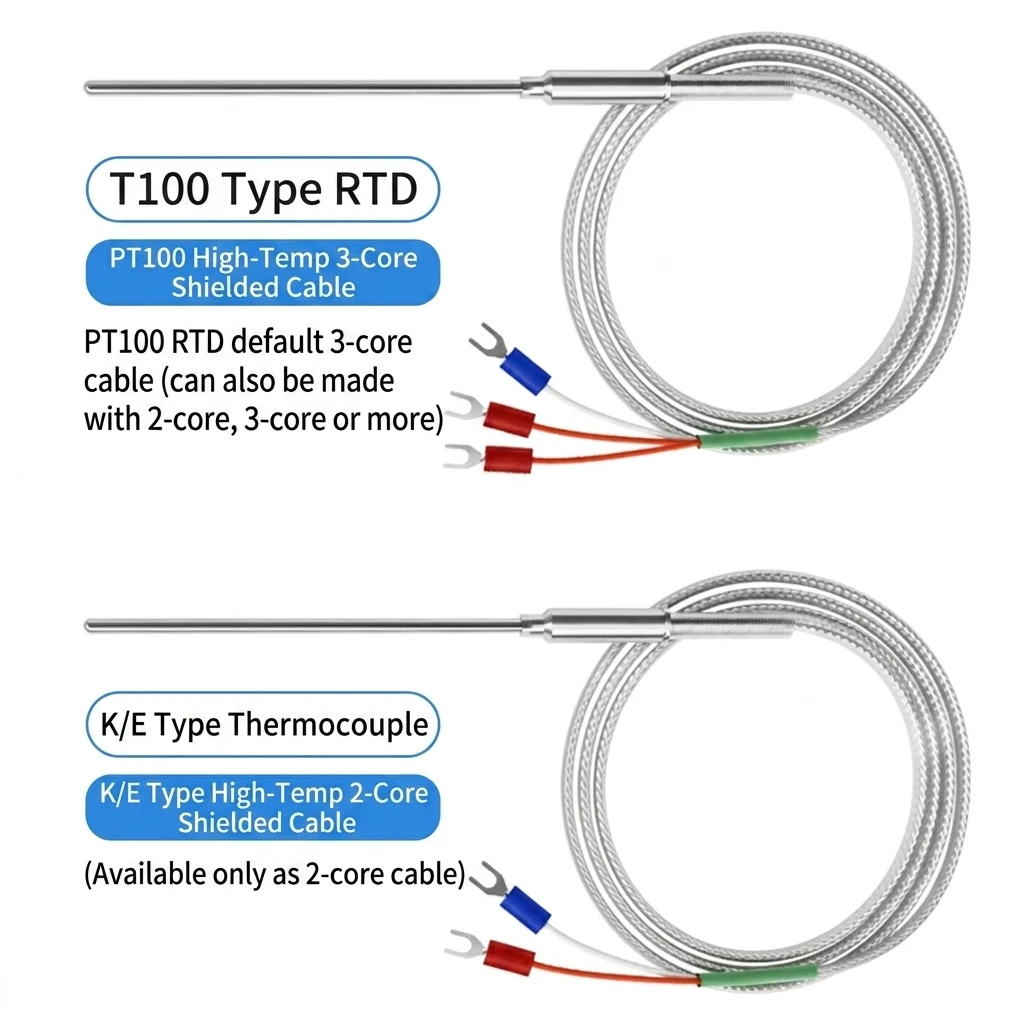

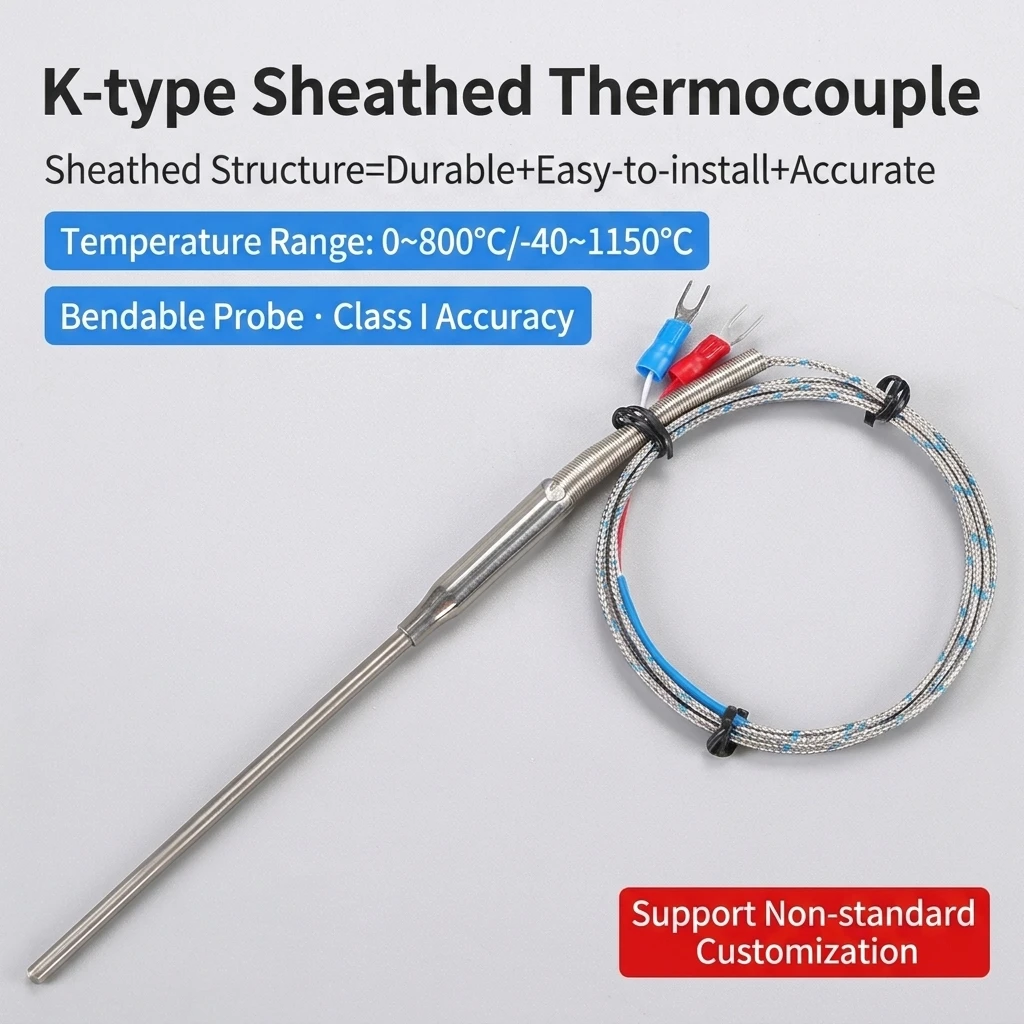

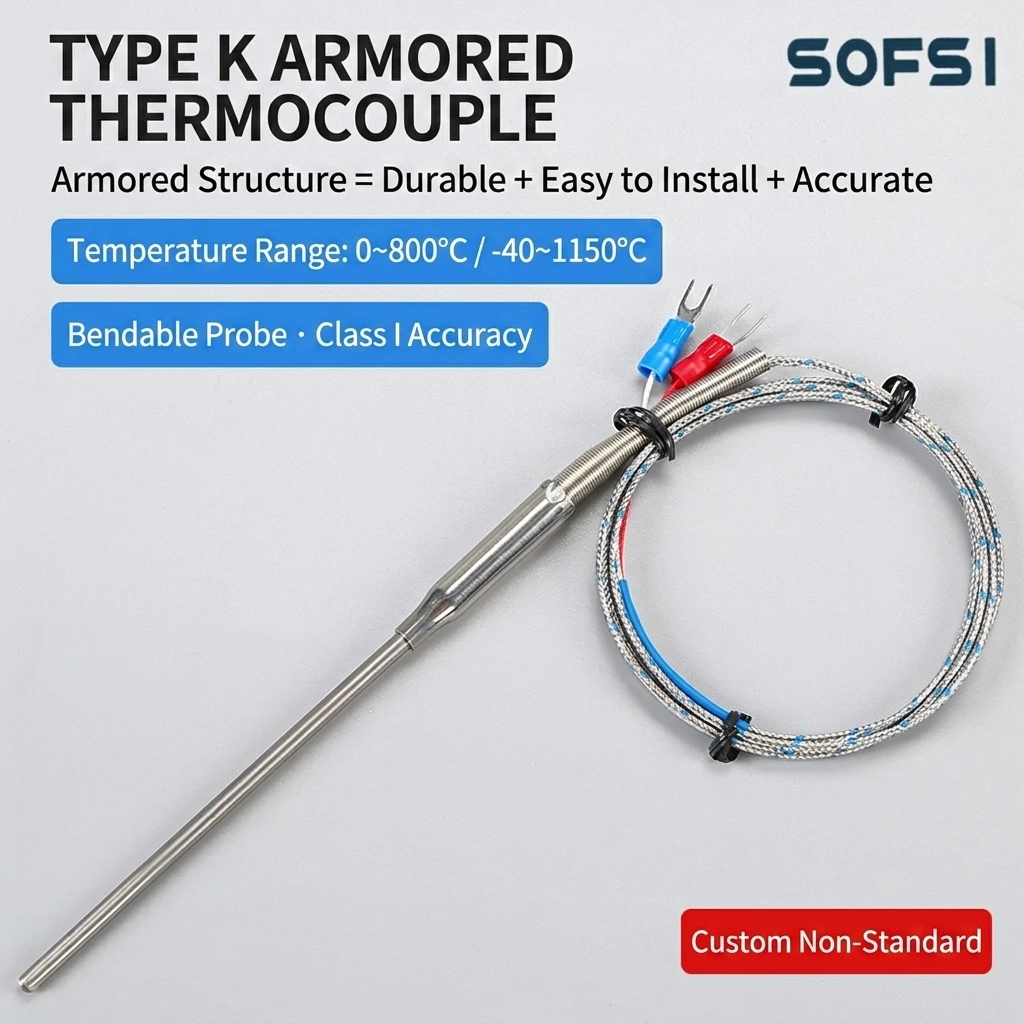

Multiple Thermocouple & RTD Grades Thermocouple: K/E/J/N/T/S/R/B; RTD PT100/PT1000. K/E thermocouple with 2-core wire, PT100 with 3-core shielded wire for easy selection. Wide Measuring Temperature Range K type MI thermocouple range -40~1150℃, normal working 0~800℃, Class I high precision, fast thermal response.
3 Types Measuring Tip for Different Working Condition Insulated tip (strong anti-interference, hazardous environment), grounded tip (fast response), exposed tip (highest sensitivity); insulated as default.

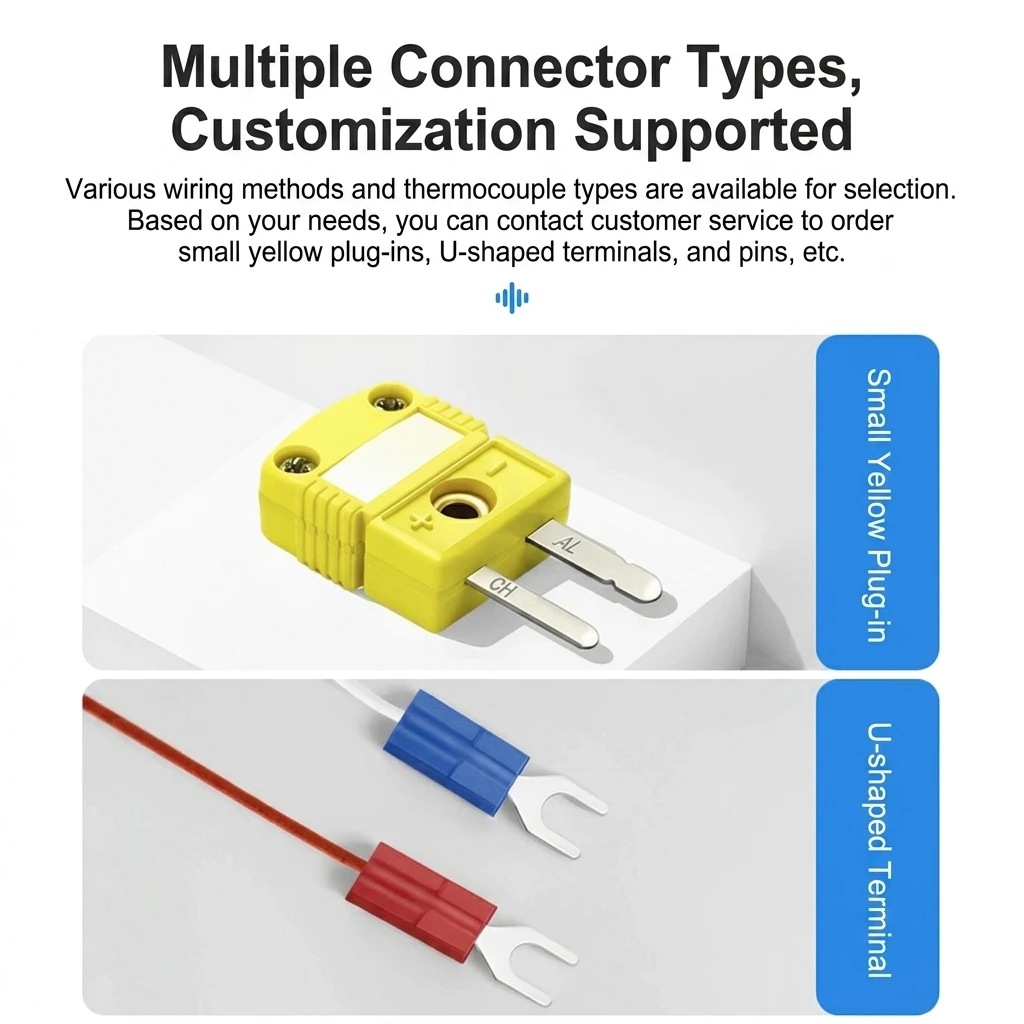

High Temperature Braided Shielded Cable Double stainless steel woven shielding block EMI interference from inverters & motors, anti-oxidation, stable reading without drift. Various Termination Connectors Customizable U spade terminal, mini yellow K connector, pin terminal, bare wire four options, compatible with all temperature controllers & recorders.

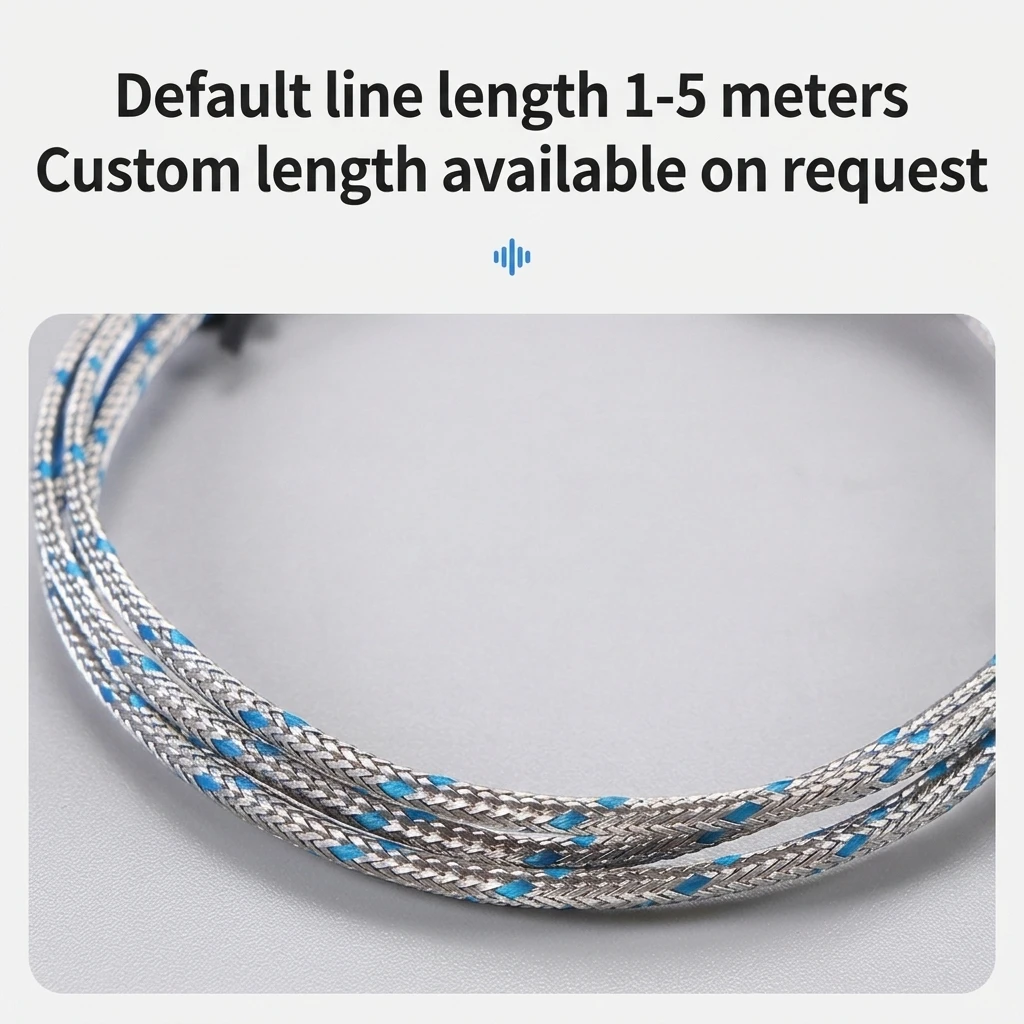

Custom Cable Length 1/2/3/5m standard length ready, accept extra long/short custom cable to fit machine layout.
Industrial Durable Sealed Structure Integrated seamless welding, waterproof & oil resistant, suitable for 24h continuous production on plastic, chemical, boiler, heat treatment equipment.

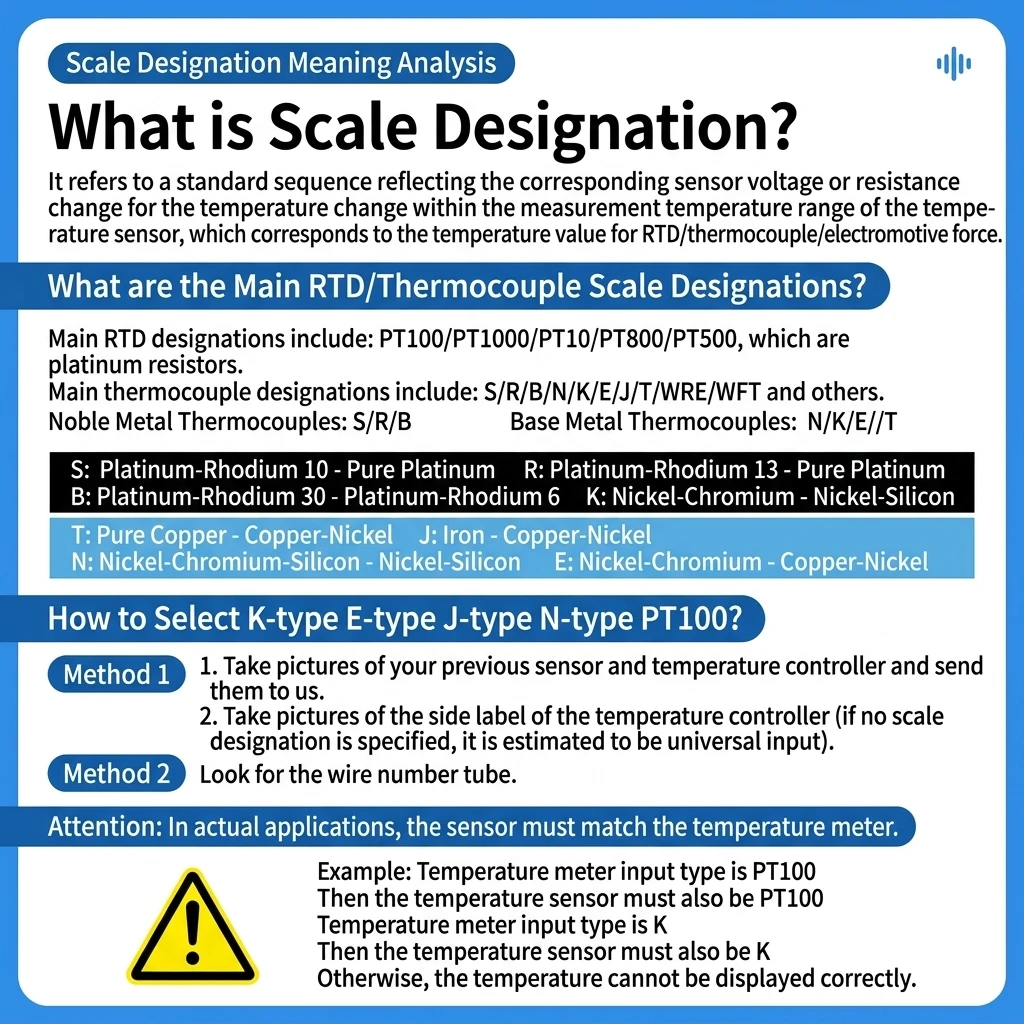

Clear Selection Guide to Avoid Mismatch Distinguish 2-core thermocouple and 3-core PT100 RTD, remind buyers to match the same grade as temperature controller to prevent display error.
