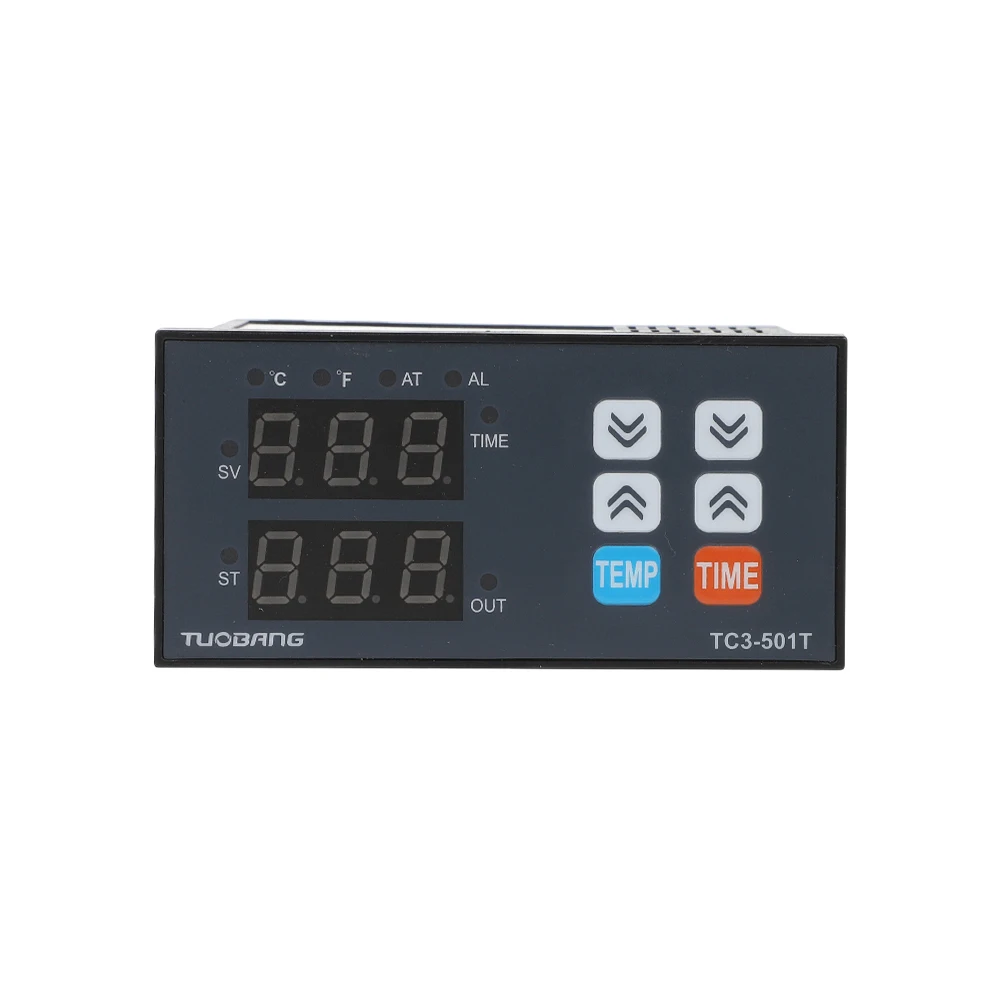

TC3-501T Temperature Control and Time Integrated Thermostat Digital Temperature Controller for Industrial Hot Stamping Machine
The TC3-501T is a dedicated temperature and time dual-control integrated digital thermostat purpose-built for industrial hot stamping machines, heat embossing equipment, branding presses, leather imprinting machines, and heat sealing machinery.
- Overview
- Recommended Products
Product Introduction
Product Overview & Core Design Positioning
The TC3-501T is a dedicated temperature and time dual-control integrated digital thermostat purpose-built for industrial hot stamping machines, heat embossing equipment, branding presses, leather imprinting machines, and heat sealing machinery. It combines precise PID temperature control and adjustable time control in one compact unit, delivering synchronized thermal and timing management for consistent, high-quality hot stamping results. Designed for 220VAC industrial operation, it features a clear digital display, simple panel operation, and stable dual-output control, making it the preferred matching controller for hot stamping equipment manufacturers and retrofit users worldwide.
Produced by Suosite Electrical, a national high-tech enterprise with over 10 years of expertise in industrial temperature control instruments, the TC3-501T is optimized for stability, ease of use, and long-term durability. Its integrated structure eliminates extra wiring, simplifies equipment assembly, and improves reliability in continuous stamping production. Whether used for new machine assembly, production line upgrades, or replacement of old analog systems, this controller ensures stable temperature and accurate timing, reduces defective products, improves yield, and enhances overall production efficiency and safety.
Key Product Features
The TC3-501T integrated thermostat combines professional hot stamping features with user-friendly operation for industrial thermal processing.
First, it adopts an all-in-one temperature and time control design, integrating two functions into one panel to save space and simplify operation for hot stamping scenarios.
Second, it uses a high-brightness dual-digit LED display that separately shows real-time temperature and timing values, enabling intuitive monitoring at a glance.
Third, it applies precision PID temperature control with fast response and minimal overshoot, ensuring stable heating for clear, firm hot stamping patterns.
Fourth, it provides adjustable time control function that automatically stops heating after the set time, preventing over-burning and ensuring consistent stamping quality.
Fifth, it supports standard K-type thermocouple input, the most widely used sensor in hot stamping and heating equipment, ensuring accurate and stable temperature measurement.
Sixth, it uses a high-power relay output with strong load capacity, suitable for directly driving heating plates, heating tubes, and hot stamping modules.
Seventh, it includes power-off memory function that retains set temperature and time parameters after a power failure, avoiding repeated setup.
Finally, it features a rugged flame-retardant plastic casing with excellent insulation, shockproof, and anti-interference performance for long-term industrial use.
Technical Advantages & Stability Performance
Backed by Suosite Electrical’s strong R&D capability and strict quality control, the TC3-501T delivers outstanding technical advantages and long-term reliability.
Its core circuit uses a high-performance industrial microcontroller and high-precision sampling circuit, achieving temperature control accuracy up to ±0.1°C for stable and repeatable heating.
The specialized dual-control logic coordinates temperature and time synchronously, avoiding quality issues caused by inconsistent pressure, temperature, or time during hot stamping.
Full photoelectric isolation between input and output effectively suppresses electromagnetic interference from motors and presses, ensuring stable operation in busy workshop environments.
Optimized heating control algorithm significantly reduces temperature fluctuation, improves pattern clarity, reduces material waste, and lowers production costs.
High-quality electronic components and stable circuit design enable 24/7 continuous operation with extremely low failure rates.
Every unit undergoes 100% full-load aging testing, temperature calibration, and safety verification before shipment to meet strict international industrial standards.
With a mean time between failures (MTBF) exceeding 50,000 hours, the TC3-501T supports uninterrupted production and reduces maintenance downtime.

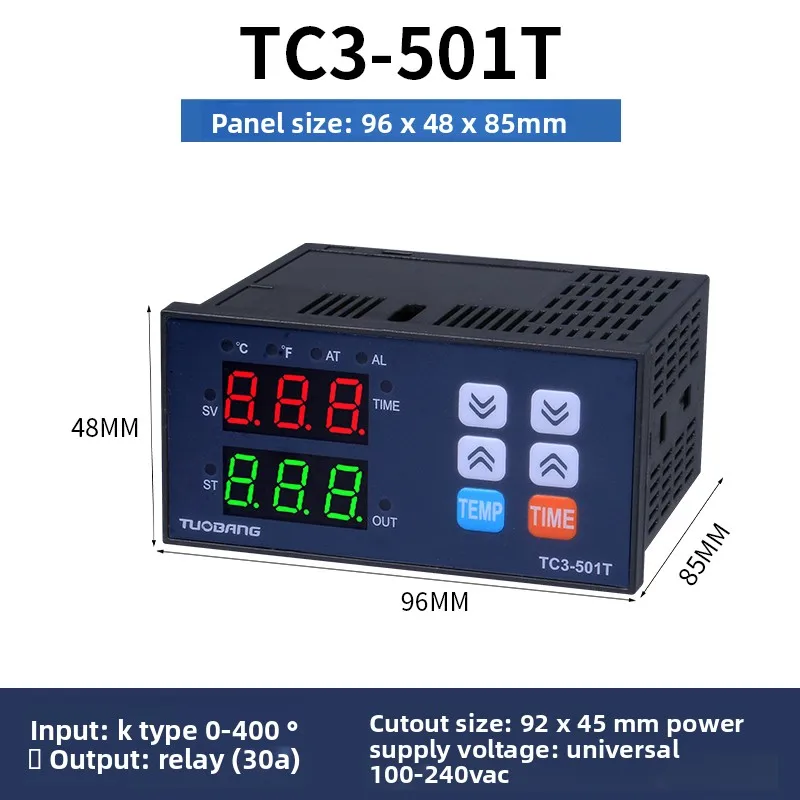

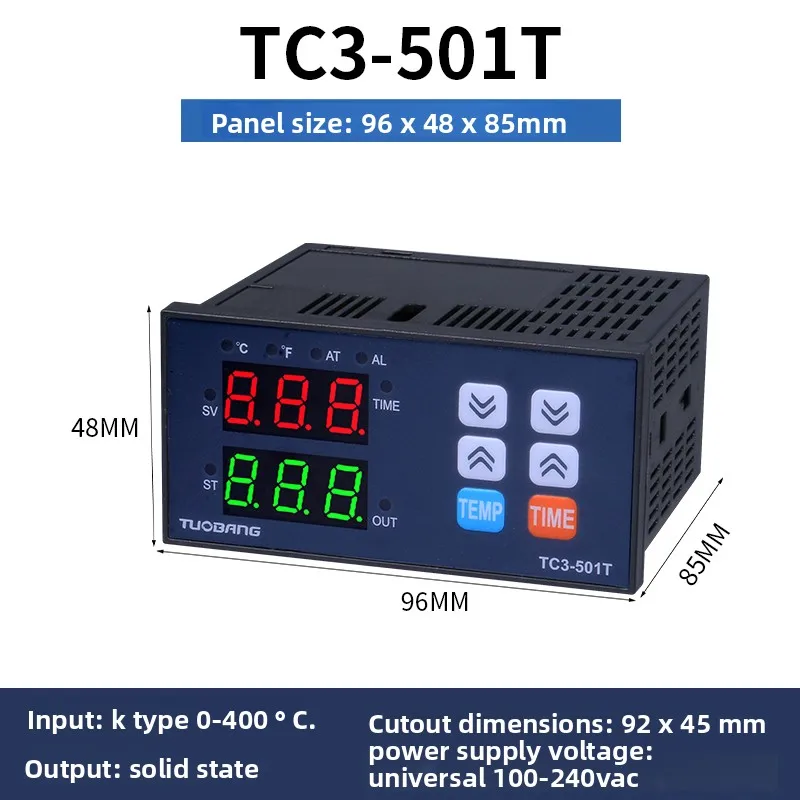

Technical Parameters & Specifications
To support engineers, purchasers, and maintenance teams in accurate selection, the TC3-501T provides complete and clear technical specifications.
Model: TC3-501T
Type: Temperature and time integrated digital thermostat
Control Method: PID temperature control + timing control
Display: Dual LED digital tubes (temperature + time)
Input: K-type thermocouple (universal for hot stamping machines)
Temperature Range: 0–400°C (adjustable)
Temperature Accuracy: ±0.1°C ~ ±1°C
Time Range: 0–999 seconds (continuously adjustable)
Output: High-power relay output
Power Supply: AC220V 50/60Hz
Operating Environment: -10°C to +65°C, humidity 35%–85%RH non-condensing
Housing Material: High-strength flame-retardant ABS plastic
Certifications: CE compliant, RoHS, industrial safety standards
These specifications ensure high compatibility and interchangeability for global hot stamping and thermal embossing equipment.
Industry Applications & Practical Cases
The TC3-501T integrated temperature and time controller is widely used in industrial fields requiring synchronized thermal and timing control, with outstanding performance in hot stamping machinery.
In hot stamping machines and heat embossing equipment, it precisely controls heating temperature and pressing time, ensuring clear, firm, and consistent patterns on leather, fabric, paper, plastic, and wood products. Many manufacturers report a 25% reduction in defective products and significantly improved production efficiency after adopting this controller.
In branding presses and logo imprinting machines, it maintains stable temperature and accurate timing to ensure consistent marking quality without scorching or incomplete transfer.
In heat sealing machines and packaging stamping equipment, it provides reliable thermal control for secure sealing and clear stamping in flexible packaging production.
In small thermal forming machines and testing equipment, its dual-mode design supports both single test runs and uninterrupted batch production.
In equipment retrofitting and maintenance, it serves as a cost-effective upgrade for old analog control systems, quickly improving precision and stability with minimal modification.
Real customer feedback confirms that the TC3-501T significantly improves equipment stability, reduces downtime, lowers maintenance costs, and delivers clear economic benefits.
Commercial Value & Supply Chain Support
Choosing the TC3-501T brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, distributors, and end users worldwide.
Integrated temperature and time control reduces component count, simplifies wiring, lowers assembly costs, and shortens production cycles for hot stamping machine builders.
Dual-function operation improves production flexibility, supporting both small-batch customization and large-volume mass production.
Precise PID control and accurate timing reduce material waste, lower defective rates, save energy, and improve overall product quality.
User-friendly panel operation reduces training time and labor costs, while stable performance lowers after-sales complaints and enhances brand reputation.

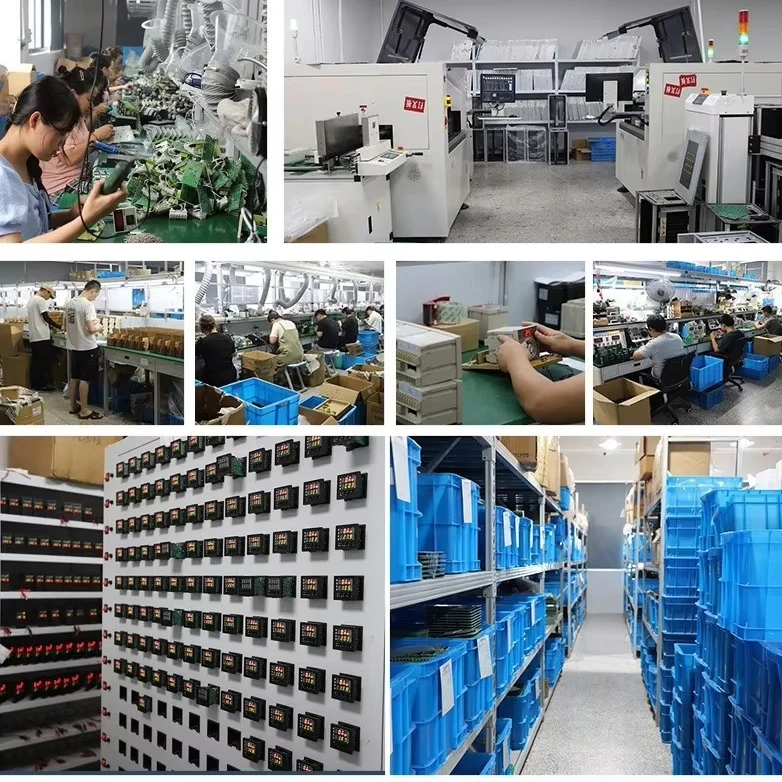

Suosite Electrical provides robust supply chain support with mature production lines, sufficient inventory, and fast 48-hour delivery for standard models.
The company supports ODM/OEM customization, including logo, panel layout, wiring, and parameter settings to meet diverse project requirements.
A professional technical team offers full-life-cycle support from pre-sales selection and installation guidance to after-sales troubleshooting.
As a national high-tech enterprise with CE certification and multiple patents, Suosite Electrical maintains strict quality control and continuous innovation.
The TC3-501T series provides stable, reliable, and cost-effective integrated control solutions for global hot stamping customers, backed by consistent quality and long-term supply capacity.
About Product
Highlight
State-of-the-Art Technology: Ensures high accuracy and efficiency for various applications.
1-Year Warranty: Backed by a reputable brand, TUOBANG, ensuring reliability.
ODM/OEM Customization: Tailors solutions to meet specific customer needs.
High-Quality Production: Originating from China's Zhejiang Province, ensuring craftsmanship.
