220V Digital Control Box Temperature Controller Timer for Hot Press Stamping Machine K-type Manual/Automatic Plastic 30A Relay
This 220V Digital Control Box Temperature Controller Timer is an all-in-one integrated control system professionally developed for hot press stamping machines, heat sealing machines, branding machines, and small hot pressing equipment.
- Overview
- Recommended Products
Product Introduction
Product Overview & Core Application Positioning
This 220V Digital Control Box Temperature Controller Timer is an all-in-one integrated control system professionally developed for hot press stamping machines, heat sealing machines, branding machines, and small hot pressing equipment. It combines temperature control, time control, manual/automatic dual-mode operation, and high-power 30A relay drive into one compact plastic control box, providing a complete, ready-to-use control solution for hot stamping and heat pressing processes. Unlike separate instruments that require complex wiring, this pre-assembled control box simplifies installation, debugging, and operation, making it extremely suitable for equipment manufacturers, retrofitting engineers, and end-users who need a reliable, plug-and-play temperature and timing control system.
Built with industrial-grade components and mature circuit design, the unit supports K-type thermocouple input, dual-mode control, and stable 30A relay output to directly drive heating tubes, heating plates, and solenoid valves. With over 10 years of expertise in temperature controllers and relays, Suosite Electrical has optimized this control box for durability, stability, and ease of use. It delivers precise temperature control and accurate time control to ensure consistent stamping quality, clear patterns, firm bonding, and high production efficiency. Whether used for new machine assembly or equipment upgrading, this control box greatly reduces system complexity, shortens commissioning time, and improves overall equipment reliability.
Key Product Features
This digital control box comes with a full set of practical, user-friendly features tailored for hot press stamping applications.
First, it supports manual and automatic dual-mode operation, allowing users to switch freely between manual debugging and automatic production modes to meet different operational needs.
Second, it integrates dual-function control of temperature and time, achieving synchronous regulation of heating temperature and pressing duration, which is critical for high-quality hot stamping.
Third, it uses a high-brightness LED digital display for clear, real-time visibility of measured temperature, set temperature, and remaining time, even in low-light workshop environments.
Fourth, it adopts a high-power 30A relay output with strong load capacity, enabling direct driving of heating plates, heating tubes, and contactors without additional intermediate relays.
Fifth, it supports K-type thermocouple input, widely used in hot stamping machines for stable and accurate temperature collection.
Sixth, it features simple button operation with intuitive parameter setup, so workers can master operation quickly without professional training.
Seventh, it has a power-off memory function that automatically saves set parameters to avoid reconfiguration after a power failure.
Finally, the entire system is housed in a high-strength plastic enclosure with good insulation, heat resistance, and flame-retardant properties, ensuring safe and stable operation in industrial environments.
Technical Advantages & Stability Performance
Backed by Suosite Electrical’s strong R&D capability and strict quality control, this temperature controller timer control box offers outstanding technical advantages and long-term reliability.
Its core control circuit uses a high-speed industrial microcontroller and high-precision AD sampling, delivering temperature accuracy up to ±1°C, ensuring stable and consistent heating for hot stamping processes.
The control box adopts a professional anti-interference design, including optical isolation, surge protection, and noise filtering circuits, allowing stable operation in workshops with frequent motor starts, press actions, and complex electromagnetic interference.
The time control module uses high-precision timing logic with an accuracy of ±0.1 seconds, ensuring consistent pressing duration and improving product qualification rate.
The built-in 30A relay uses high-quality silver alloy contacts, supporting more than 100,000 mechanical operations with low contact resistance and long service life.
Every control box undergoes 100% full-load aging testing, temperature cycling testing, and safety testing before shipment, meeting strict industrial quality standards.
With a mean time between failures (MTBF) of more than 50,000 hours, the unit supports continuous long-term production.
Compared with self-assembled control systems, this integrated control box has higher stability, stronger anti-interference performance, simpler wiring, and lower failure rates, making it a trusted choice for hot press machine manufacturers worldwide.
Technical Parameters & Specifications
To support engineers, purchasers, and maintenance personnel in accurate selection and application, this digital control box provides complete and clear technical specifications.
Power supply: AC 220V (50/60Hz), dedicated for industrial and commercial hot stamping equipment.
Temperature control range: 0–400°C, suitable for most hot press and hot stamping heating processes.
Temperature control accuracy: ±1°C, ensuring stable and precise heating.
Temperature sensor: K-type thermocouple input, universal for hot stamping machines.
Time control range: 0–999 seconds (adjustable), meeting various pressing time requirements.
Control mode: Manual mode + Automatic mode, dual-mode switching.
Output type: 30A high-power relay output, direct drive for heaters and valves.

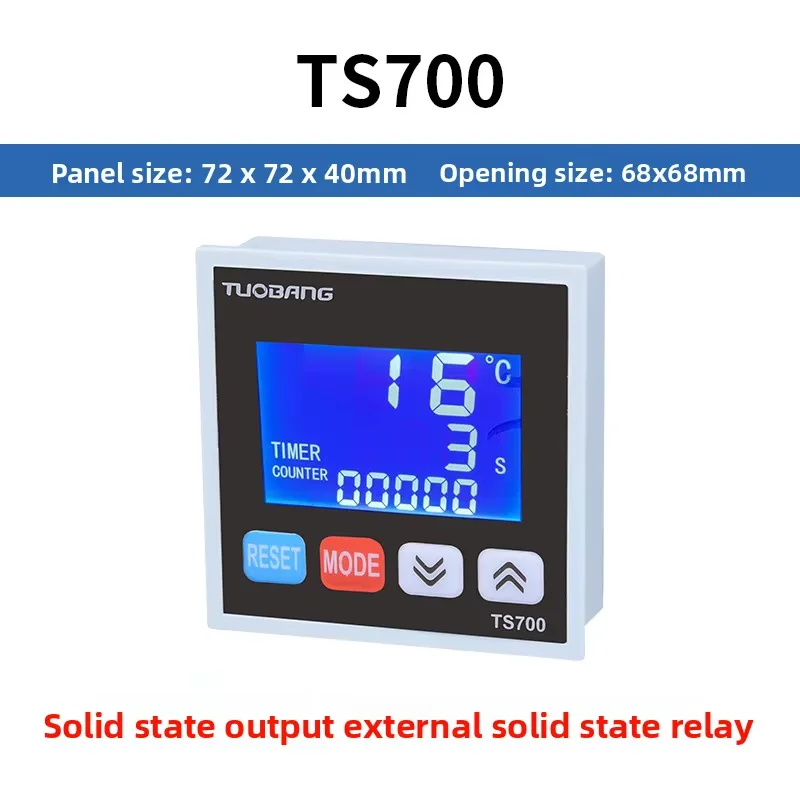

Display: Dual LED digital tubes, showing temperature and time simultaneously.
Shell material: High-strength flame-retardant plastic, good insulation and heat dissipation.
Operating environment: -10°C to +60°C, humidity 35%–85%RH (non-condensing).
Installation: Wall-mounted or panel-mounted, compact size, easy installation.
Protection: Overcurrent protection, reverse connection protection, anti-interference protection.
All parameters comply with international industrial standards and safety certification requirements, ensuring high compatibility, safety, and interchangeability for global users.
Industry Applications & Practical Cases
This 220V digital control box is widely used in many fields requiring integrated temperature and time control for hot pressing and stamping, with outstanding performance in various applications.
In hot press stamping machines, it controls heating temperature and pressing time to ensure clear, firm, and beautiful patterns on textiles, leather, paper, and plastic products. Many stamping machine manufacturers have improved product qualification rate by over 15% and reduced rejections after adopting this control box.
In heat sealing machines and packaging machines, it provides stable temperature and time control for sealing bars, ensuring firm sealing, no damage to materials, and improved packaging efficiency.
In branding machines and marking machines, it delivers precise heating and timing to ensure clear and durable branding on wood, leather, and plastic products.
In small hot pressing equipment for plastics and rubber, it controls temperature and pressure-holding time to ensure stable molding quality and high production efficiency.
In equipment retrofitting and maintenance, it serves as a cost-effective replacement control system, quickly restoring equipment function with minimal modification.
Real customer feedback confirms that this integrated control box simplifies operation, reduces failure rates, lowers maintenance costs, and significantly improves equipment stability and product consistency.
Commercial Value & Supply Chain Support
Choosing this integrated temperature controller timer control box brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, distributors, and end users.
The all-in-one design eliminates the need for separate instruments, wiring, and assembly, greatly reducing production time, labor costs, and failure points. Stable temperature and time control improves product quality, reduces defective rates, saves energy, and lowers production costs. The manual/automatic dual mode improves operational flexibility and production efficiency.
For equipment manufacturers, using this pre-assembled control box enhances product reliability, shortens development cycles, and strengthens brand competitiveness, helping expand domestic and international markets.
Suosite Electrical provides strong supply chain assurance: mature production lines, sufficient inventory, and fast delivery, with most standard models shipped within 48 hours to meet urgent project schedules.
The company supports OEM/ODM customization, including logo, shell color, parameter ranges, and interface functions, to meet diverse brand and project requirements.
Backed by a professional technical team, Suosite Electrical offers full-life-cycle services including pre-sales selection, on-site debugging guidance, and after-sales support.
As a national high-tech enterprise with CE certification and multiple patents, Suosite Electrical maintains strict quality control and continuous R&D investment.
This digital control box provides a stable, cost-effective, and easy-to-use temperature and timing control solution for global hot press stamping customers, backed by consistent quality and long-term supply capacity.
About Product
Highlight
LCD Display: Clear visual feedback for accurate monitoring.
Three-in-One Functionality: Combines temperature control, timer, and display.
Wide Temperature Range: Operates from 0°C to 400°C.
Relay Output: Supports high current for reliable hot press operations.
