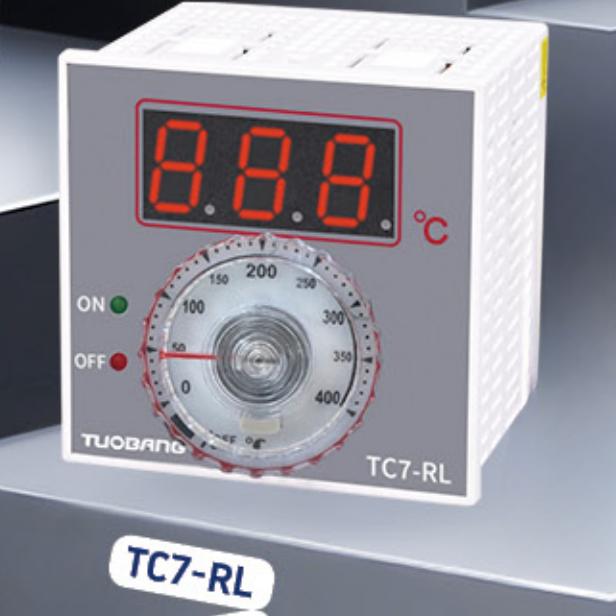

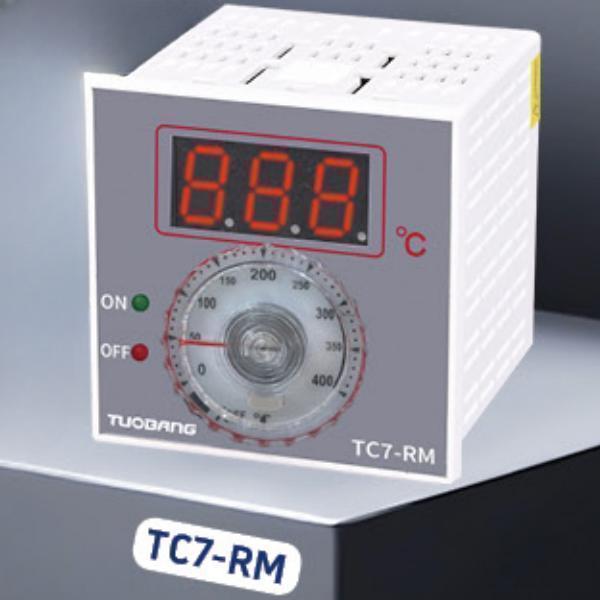

TC7-D/TC7-R Dial type rotary knob temperature controller

Product Introduction

Product Overview & Core Design Concept

The TC7-D/TC7-R Dial type rotary knob temperature controller is a classic, reliable, and easy-to-operate industrial temperature control unit independently developed and produced by Suosite Electrical. Designed for scenarios requiring quick temperature setting, stable output, and zero complex operation, this series combines a rotary knob adjustment mechanism with a high-precision temperature control circuit, delivering stable heating control for small heating equipment, electrical cabinets, packaging machinery, ovens, and various daily and industrial electrical appliances. Unlike complex digital programming controllers, the TC7‑D/TC7‑R uses a mechanical rotary dial for direct temperature setting, enabling operators to set target temperatures within seconds without training or manuals. With over 10 years of experience in manufacturing temperature controllers and solid‑state relays, Suosite Electrical has built this series for durability, stability, and cost‑effectiveness. It supports multiple sensor inputs and flexible output configurations, making it suitable for mass equipment matching, replacement in the maintenance market, and on‑site quick adjustment. The compact structure, standard panel size, and strong compatibility allow easy integration into new equipment or retrofits, helping users achieve stable temperature control while simplifying operation and reducing failure points.

Key Product Features

The TC7-D/TC7-R Dial type rotary knob temperature controller is equipped with practical, user‑centric features that make operation, installation, and maintenance extremely convenient. First, it adopts a precision rotary knob adjustment system, with clear scale markings and smooth rotation, supporting stepless temperature setting and avoiding misoperation caused by complex buttons. Second, the instrument provides a clear temperature display, either via a high‑brightness LED digital tube or an analog pointer dial, ensuring real‑time visibility of measured and set values even in low‑light industrial environments. Third, it supports multiple sensor inputs, including common thermocouples (K, J, E, T) and PT100 RTD, covering most industrial temperature ranges without hardware changes. Fourth, the series offers stable and reliable control outputs—the TC7‑D uses relay output while the TC7‑R supports SSR drive output, both capable of directly driving heaters, contactors, fans, and other actuators with strong load capacity. Fifth, it features a power‑off memory function, automatically retaining all settings to avoid reconfiguration after a power failure. Sixth, the instrument uses a standard panel mounting structure with simple wiring terminals, enabling fast installation and commissioning. In addition, the flame‑retardant shell, anti‑interference circuit design, and robust internal structure ensure long service life and stable performance in harsh industrial environments.

Technical Advantages & Stability Performance

Backed by Suosite Electrical’s strong R&D capability and strict quality control system, the TC7-D/TC7-R series delivers outstanding technical advantages and long‑term reliability. Its core control circuit uses an industrial‑grade microcontroller with high‑precision sampling technology, ensuring measurement accuracy up to ±1°C and stable output even in complex electromagnetic environments. The anti‑interference hardware design integrates optical isolation, surge protection, and noise filtering circuits, enabling stable operation in workshops with frequent motor starts, high‑power equipment, and dense wiring. The rotary knob mechanism uses high‑precision potentiometers with long mechanical life, supporting more than 10,000 adjustment cycles without failure. The control logic uses an optimized algorithm to prevent frequent switching caused by slight temperature fluctuations, reducing wear on connected equipment and extending service life. Every unit undergoes 100% full‑load aging testing, insulation testing, and high/low‑temperature testing before shipment, meeting industrial‑grade quality standards. The mean time between failures (MTBF) exceeds 50,000 hours, supporting 24/7 uninterrupted operation. Compared with similar products, the TC7‑D/TC7‑R series offers higher durability, simpler operation, stronger stability, and lower failure rates, making it a trusted choice for equipment manufacturers and maintenance professionals worldwide.

Technical Parameters & Specifications

To help engineers, purchasers, and maintenance teams make accurate selections, the TC7-D/TC7-R Dial type rotary knob temperature controller provides complete and clear technical parameters. Input types: K, J, E, T thermocouples; PT100 RTD (configurable). Measurement range: 0–400°C (adjustable based on sensor). Control accuracy: ±1°C, meeting industrial and commercial temperature control requirements. Adjustment mode: rotary knob stepless adjustment with clear scale indication. Display mode: LED digital display or pointer dial, real-time display of measured value and set value. Control output: TC7‑D relay output (250VAC 3A); TC7‑R SSR drive output (12V DC). Power supply: AC85–264V wide voltage input, suitable for global power grids. Operating environment: -10°C to +60°C, humidity 35%–85%RH (non‑condensing). Installation: panel mount, standard opening size, compatible with most electrical cabinets and equipment panels. Mechanical life: knob adjustment ≥10,000 cycles; relay output ≥100,000 operations. All parameters comply with international industrial standards and CE certification requirements, ensuring high compatibility, safety, and interchangeability for global users.

Industry Applications & Practical Cases

The TC7-D/TC7-R Dial type rotary knob temperature controller is widely used in numerous fields requiring simple, stable, and fast temperature adjustment, with remarkable application results. In packaging and plastic machinery, such as sealing machines, extruders, and hot stamping equipment, it provides stable heating control to ensure consistent product quality and high production efficiency. Many packaging machine manufacturers report reduced downtime and improved yield after switching to TC7‑D/TC7‑R controllers. In small heating and drying equipment, including ovens, heating plates, incubators, and drying cabinets, it delivers uniform temperature control and meets food, chemical, and pharmaceutical processing standards. In electrical control cabinets, it prevents overheating and condensation, extending the service life of circuit breakers, contactors, and drives. In agricultural and breeding equipment, such as greenhouses and incubators, it maintains stable temperatures to support healthy growth. The series is also widely used in food machinery, printing equipment, small heating machines, and maintenance markets as a reliable replacement part. Real customer feedback confirms that the TC7‑D/TC7‑R series simplifies operation, reduces failure rates, lowers maintenance costs, and significantly improves equipment stability.

Commercial Value & Supply Chain Support

Choosing the TC7-D/TC7-R Dial type rotary knob temperature controller brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, distributors, and maintenance providers. The simple knob operation reduces training costs and operator errors, while the stable control improves product quality, reduces rejects, and saves energy. The compact design and easy installation cut assembly time and labor costs, enhancing production efficiency. For equipment manufacturers, using the TC7‑D/TC7‑R series improves product reliability and brand reputation, helping expand domestic and overseas markets. Suosite Electrical provides strong supply chain assurance: mature production lines, sufficient inventory, and fast delivery, with most standard models shipped within 48 hours to meet urgent project schedules. The company supports ODM/OEM customization, including logo, scale markings, parameters, and output types, to meet diverse brand and project needs. Backed by a professional technical team, Suosite Electrical offers full‑life‑cycle services including pre‑sales selection, on‑site debugging guidance, and after‑sales support. As a national high‑tech enterprise with CE certification and multiple patents, Suosite Electrical maintains strict quality control and continuous R&D investment. The TC7‑D/TC7‑R series provides stable, cost‑effective, and easy‑to‑use temperature control solutions for global industrial customers, backed by consistent quality and long‑term supply capacity.

Model meaning

Precautions

1.To eliminate inductive interference, please separate the wiring of this product from high-voltage lines, power lines, etc.

2.When powering on or off the product, please use a power switch or circuit breaker.

3.Try to stay away from high-frequency equipment (high-frequency welding machines, high-frequency sewing machines, large-capacity SCR controllers).

4.This product is used in the following environments:

• • ① Indoor
  • ② Pollution level 2
  • ③ Below 2000m altitude
  • ④ Installation Classification II

Specification

Shape and opening size
