XRKC Digital Display PID Temperature Controller CHB102 ABS AC100-240V 0.1 Accuracy OEM/ODM Support Industrial Thermostat

Product Introduction

Product Overview & Core Design Positioning

The XRKC CHB102 Digital Display PID Temperature Controller is a high‑precision industrial‑grade thermostat independently developed for automated production lines, heating equipment, packaging machinery, plastic molding machines, and environmental test chambers. Built with a rugged ABS housing, ultra‑high 0.1°C display accuracy, and universal 100–240VAC power input, this controller delivers professional, stable temperature control for global industrial users. It integrates advanced self‑tuning PID algorithms, multi‑sensor compatibility, and multiple output modes, making it ideal for equipment manufacturers, system integrators, and maintenance scenarios requiring reliable, high‑precision thermal management.
Suosite Electrical, with over 10 years of expertise in industrial instrumentation and solid‑state relays, engineered the CHB102 for durability, accuracy, and ease of use. Supporting full OEM/ODM customization—including branding, panel design, output types, and alarm logic—the CHB102 meets diverse project requirements while maintaining industrial‑grade reliability. Whether used for new equipment assembly, retrofits, or aftermarket replacement, this controller provides precise temperature regulation, reduces process variation, and improves product consistency across manufacturing environments.

Key Product Features

The XRKC CHB102 temperature controller is equipped with practical, user‑centric features optimized for industrial environments.
First, it delivers industry‑leading 0.1°C high‑definition display accuracy, enabling ultra‑precise monitoring and control for sensitive processes.
Second, it supports universal 100–240VAC wide‑range power input, compatible with global power grids without transformers or adapters.
Third, it uses a high‑strength ABS engineering plastic casing, offering excellent insulation, flame resistance, shockproofing, and corrosion resistance for long service life.
Fourth, it features intelligent PID auto‑tuning technology that automatically optimizes control parameters, minimizing temperature overshoot and ensuring stable heating.
Fifth, it accepts universal sensor input, including K, J, E, T thermocouples and PT100 RTD, covering nearly all industrial temperature measurement demands.
Sixth, it provides flexible control outputs, including relay, solid‑state relay (SSR) drive, and analog retransmission for broad compatibility with heaters, valves, fans, and PLCs.
Seventh, it includes comprehensive alarm protection (high limit, low limit, sensor break, deviation alarm) to safeguard equipment and enhance operational safety.
Eighth, it retains power‑off parameter memory to automatically restore settings after a power failure, avoiding repeated configuration.
Finally, it adopts a standard compact panel size for easy installation in electrical cabinets and equipment consoles.

Technical Advantages & Stability Performance

Backed by Suosite Electrical’s strong R&D capability and strict quality management, the XRKC CHB102 demonstrates outstanding technical advantages and long‑term reliability.
Its core circuit employs a high‑speed industrial microcontroller paired with 24‑bit high‑precision AD sampling, achieving measurement accuracy up to ±0.1% FS for stable and repeatable readings.
Full photoelectric isolation between input, output, and power circuits effectively suppresses electromagnetic interference from motors, inverters, and high‑power equipment, ensuring stable operation in harsh industrial environments.
The optimized PID algorithm suppresses temperature oscillation, accelerates response speed, improves production consistency, and reduces energy consumption.
Every unit undergoes 100% full‑load aging testing, insulation testing, and temperature cycling verification before shipment, complying with strict industrial quality standards.
With a mean time between failures (MTBF) exceeding 50,000 hours, the CHB102 supports 24/7 uninterrupted operation.
Compared with standard controllers, it offers higher precision, stronger anti‑interference performance, better durability, and lower failure rates, earning high trust from professional equipment manufacturers worldwide.

Technical Parameters & Specifications

To support engineers, purchasers, and maintenance teams in accurate selection, the CHB102 provides complete and clear technical specifications.
Model: XRKC CHB102
Control type: Digital display PID intelligent temperature controller
Display accuracy: 0.1°C (high‑definition)
Housing material: ABS engineering plastic, flame retardant
Power supply: AC100–240V 50/60Hz (universal)
Input sensor: Universal thermocouple (K, J, E, T) and PT100 RTD
Measurement range: -50°C to +1300°C (depending on sensor)
Control accuracy: ±0.1°C ~ ±1°C
Control output: Relay / SSR drive / analog retransmission (configurable)
Alarm output: Upper limit, lower limit, sensor break, deviation alarm
Operating environment: -10°C to +60°C, humidity 35%–85%RH non‑condensing

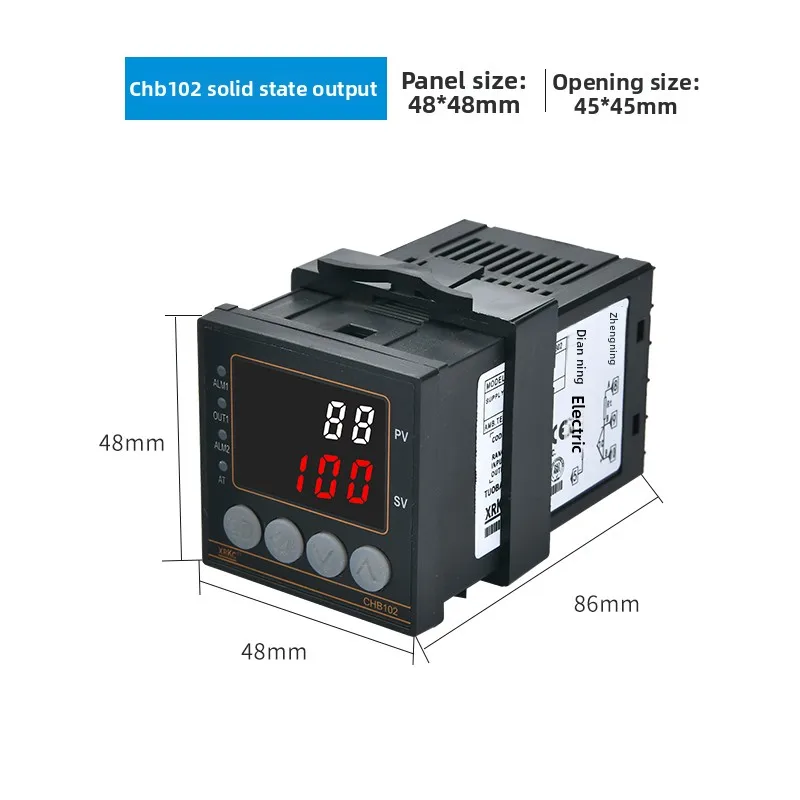

Installation: Panel mount, standard size
Certifications: CE compliant, RoHS, international industrial safety standards
These specifications ensure high compatibility and interchangeability for global industrial automation systems.

Industry Applications & Practical Cases

The XRKC CHB102 PID temperature controller is widely applied across industries requiring high‑precision thermal control, with proven performance in demanding environments.
In plastic and packaging machinery, including extruders, hot runners, sealing machines, and injection molding equipment, it stabilizes barrel and mold temperature, improving product gloss, reducing defects, and increasing yield. Many factories report a 15% reduction in scrap rates after adopting the CHB102.
In heating and drying equipment such as precision ovens, drying cabinets, heating plates, and incubators, it maintains uniform temperature distribution to meet food, pharmaceutical, and chemical processing standards.
In environmental test chambers and laboratory instruments, its 0.1°C high precision supports material reliability testing, aging experiments, and scientific research projects.
In electrical control cabinets, it prevents overheating and condensation, extending the service life of contactors, drives, and circuit boards.
It is also widely used in food machinery, printing equipment, heat treatment devices, new energy equipment, and small automated production lines.
Real customer feedback confirms that the CHB102 significantly improves stability, reduces downtime, lowers maintenance costs, and delivers clear economic benefits.

Commercial Value & Supply Chain Support

Choosing the XRKC CHB102 brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, and distributors worldwide.
High‑precision control improves product quality, reduces defective rates, saves energy, and lowers production costs.
Universal power and sensor compatibility simplify inventory management and equipment design, while fast setup reduces assembly time.
OEM/ODM customization strengthens brand identity and enhances market competitiveness.
Suosite Electrical provides robust supply chain support with mature production lines, sufficient inventory, and 48‑hour rapid delivery for standard models.
Customization services include logo, color, parameters, output types, and packaging to meet diverse project requirements.
A professional technical team offers full‑life‑cycle support, including pre‑sales selection, on‑site debugging, and after‑sales service.
As a national high‑tech enterprise with CE certification and multiple patents, Suosite Electrical maintains strict quality control and continuous R&D investment.
The CHB102 series provides stable, high‑precision, cost‑effective temperature control solutions for global industrial customers, backed by consistent quality and long‑term supply capacity.
