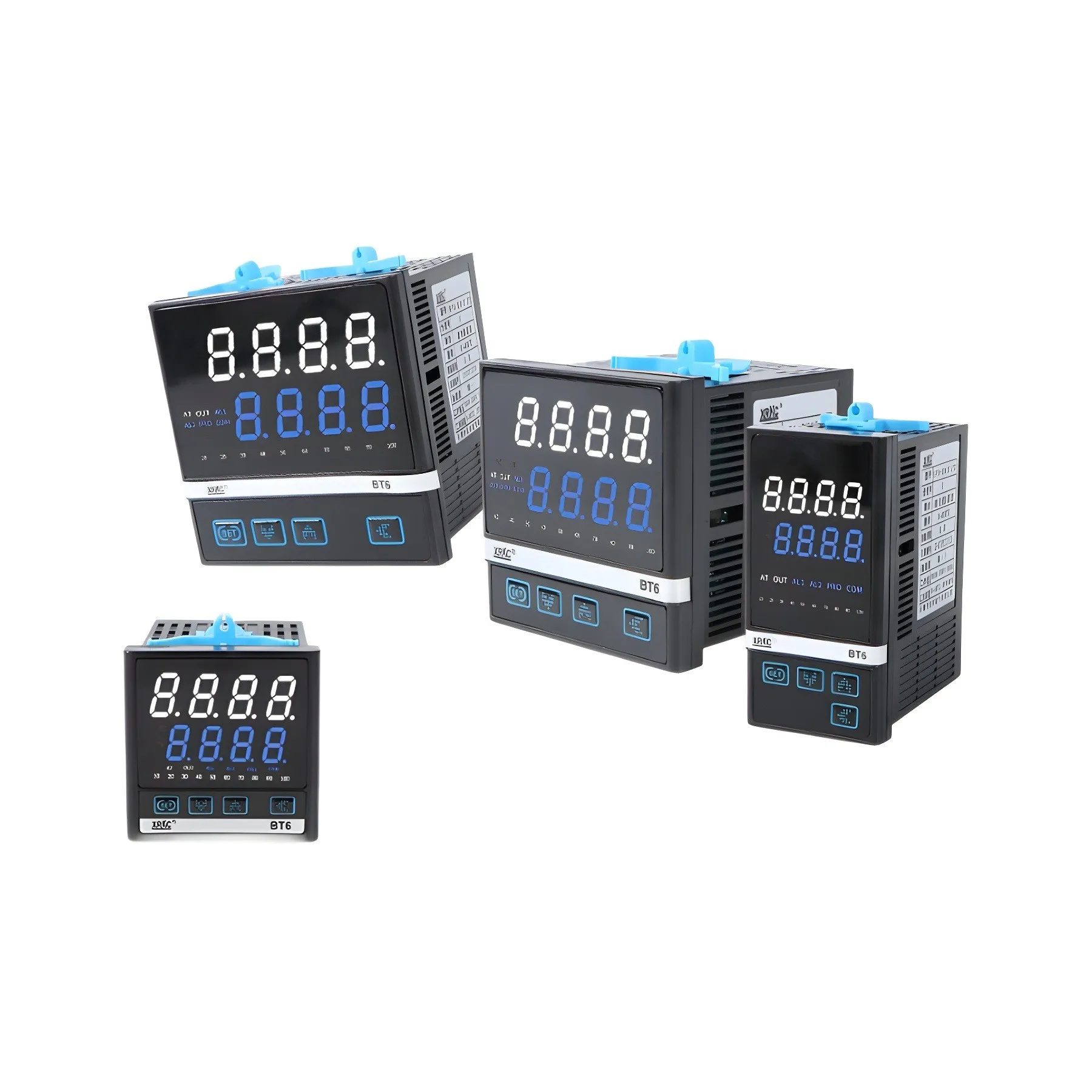

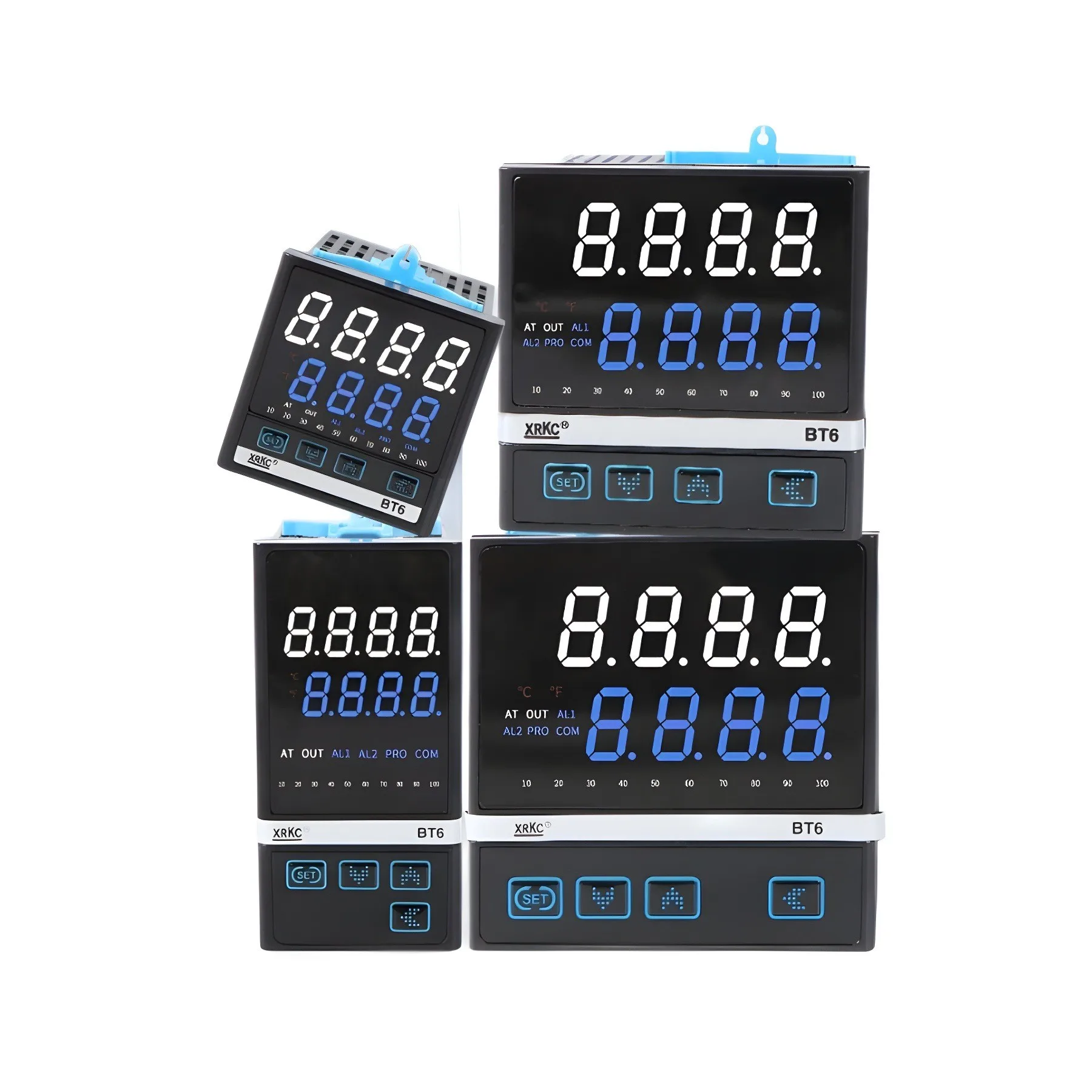

BT6-B 1220 48*96*83mm Plastic PID Intelligent Digital Temperature Controller RS485 Customizable Industrial Thermostat with Timer

Product Introduction

Product Overview & Core Design Positioning

The BT6-B 1220 industrial thermostat is a 48×96mm vertical panel-mounted PID intelligent temperature controller crafted with robust high-strength ABS plastic casing, uniquely combining precise closed-loop PID regulation, built-in independent timing module and standard RS485 Modbus RTU communication into one compact unit. Differentiated from ordinary standalone thermostats that separate temperature control and timing components, this customized digital thermostat synchronizes temperature regulation and programmable timing execution, making it an optimal pick for periodic heating processes across packaging hot stamping equipment, small industrial ovens, thermal forming machinery and lab constant-temperature test devices. Available with full OEM and ODM customization covering internal program parameter adjustment, front panel silk printing and wiring layout optimization, the BT6-B has steadily gained market traction among global machinery OEM manufacturers and automation system integrators focused on periodic thermal process equipment development. All design iteration, component screening and standardized batch production of BT6-B are finished by Suosite Electrical, a national high-tech enterprise with over ten years of concentrated R&D in industrial intelligent control instruments. Leveraging abundant field test data collected from timed heating production lines, the brand’s technical team refines the linkage logic between PID loop and timing program, fixing the common out-of-sync failure of temperature and time control seen on many low-cost assembled controllers circulating in global industrial component markets. Whether used for new equipment development or old production line renovation requiring timed thermal cycles, BT6-B delivers integrated control solutions to streamline system configuration and cut auxiliary part procurement costs for end equipment producers.

Key Product Features

The BT6-B PID thermostat integrates multi-dimensional practical functions centered on synchronous temperature + timing industrial production requirements, greatly simplifying on-site equipment wiring and parameter debugging work for maintenance technicians.
First, it follows classic 48×96mm vertical panel dimension with overall depth of 83mm, matching global standard control cabinet reserved cutouts to skip cabinet reaming during equipment upgrading and replacement installation.
Second, dual-core integrated design combines intelligent PID constant-temperature control plus independent programmable timer, allowing users to set target heating temperature and auto-running duration separately; the unit automatically cuts off output once preset timing expires to avoid over-burning of raw materials.
Third, equipped with standard RS485 Modbus communication port to realize remote parameter modification, real-time temperature and timing data uploading and multi-device bus networking for centralized SCADA monitoring.

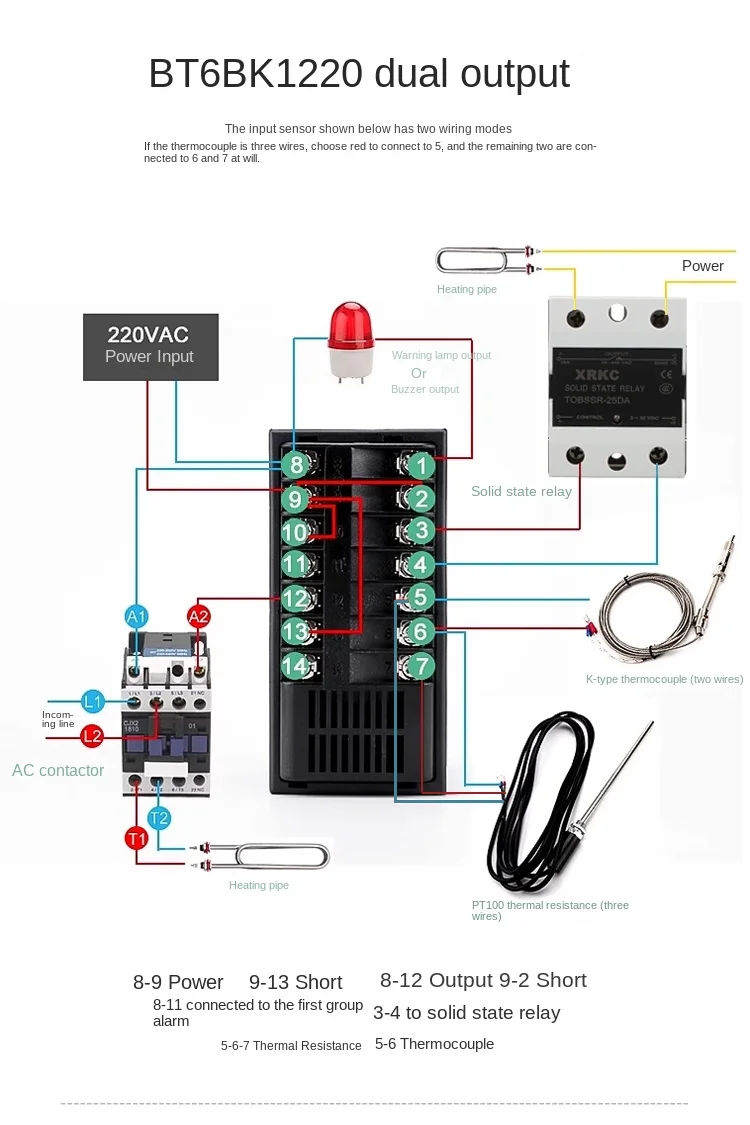

Fourth, universal multi-sensor input supports K/E/J thermocouple and PT100 RTD, enabling free probe replacement without altering internal circuit layout of existing equipment.
Fifth, flexible relay or solid state relay optional output adapts diverse heating loads ranging from small heating strips to medium-power heating barrels.
Sixth, multi-layer fault protection includes over-limit temperature alarm and sensor break alert to halt load output promptly once abnormal conditions arise.
Seventh, built-in nonvolatile memory chip permanently saves all customized temperature and timing settings after unexpected power blackout to eliminate repeated parameter reset after power recovery.
Finally, comprehensive OEM customization covers panel marking, factory preset parameters and shell appearance modification to help buyers launch differentiated proprietary control products.

Technical Advantages & Stability Performance

From EEAT professional thermal control expertise perspective, the core technical highlight of BT6 lies in its internally linked PID-timing cooperative algorithm: most generic split-type timing + temperature control solutions deploy two independent circuit boards with external signal wire linkage, prone to signal delay and asynchronous action under electromagnetic interference, while Suosite’s R&D team embeds timing and PID control on a single optimized MCU chip to realize synchronous data interaction inside the controller, drastically reducing interconnection failure probability. The built-in RS485 circuit adopts independent optoelectronic isolation layout apart from power and sampling loops to filter clutter interference from surrounding inverters and drive motors, preventing remote data hopping during long-distance bus transmission. The refined adaptive PID arithmetic dynamically adjusts output percentage following real-time temperature deviation to suppress excessive overshoot during heating startup, a key optimization verified via hundreds of continuous aging tests in Suosite’s in-house laboratory. Every finished BT6-B undergoes 48-hour full-load alternating high-low temperature aging plus complete withstand voltage and communication stability inspection before factory delivery in line with CE and RoHS industrial standards. Practical long-term operation statistics reveal the average MTBF of BT6-B exceeds 52,000 working hours under regular factory ambient, effectively lowering annual maintenance and spare part replacement expenses for end manufacturing clients.

Technical Parameters & Specifications

Standardized specification list to accelerate procurement and engineering selection:
Model No: BT6-B 1220

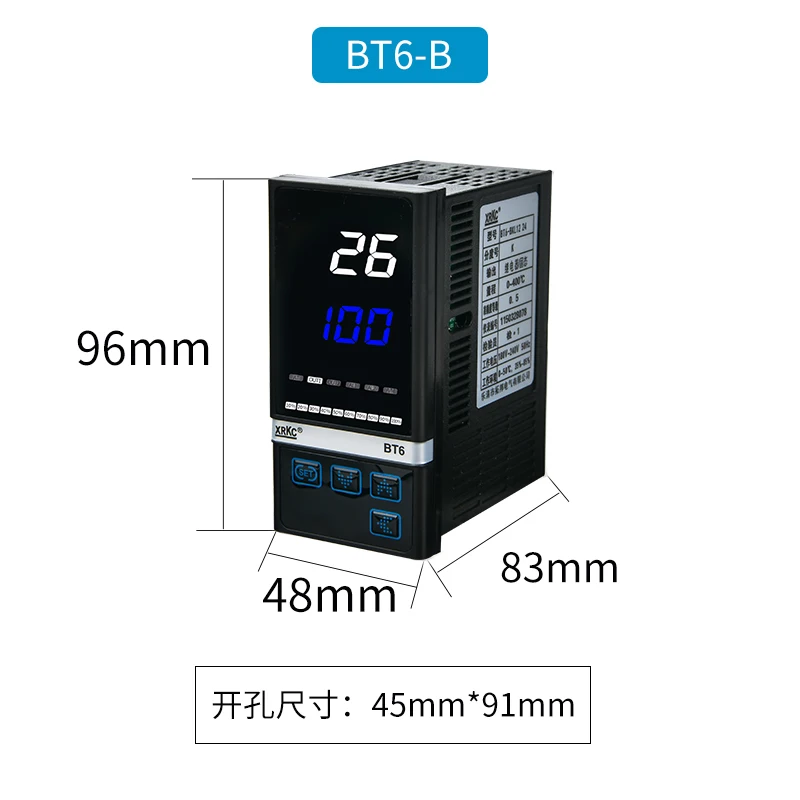

Overall Dimension: 48(W)×96(H)×83(D)mm vertical panel structure
Control Core: Intelligent auto-tuning PID + independent programmable timer dual control
Display: High-definition LED digital dual-display for temperature and timing values
Sensor Input: K/E/J Thermocouple, PT100 universal input
Temperature Measuring Range: -50℃ ~ 1300℃ (varies by matched probe)
Control Precision: ±0.1℃ high constant-temperature accuracy
Timing Range: 0~999 hours/min/sec adjustable by parameter setting
Communication: RS485 Modbus RTU standard protocol
Output Option: Mechanical Relay / SSR solid state relay optional
Alarm Function: High/low limit + sensor disconnection dual protection alarm
Rated Power: AC100~240V 50/60Hz universal wide voltage
Working Environment: -10℃ ~ +63℃, RH 35%~85% non-condensing

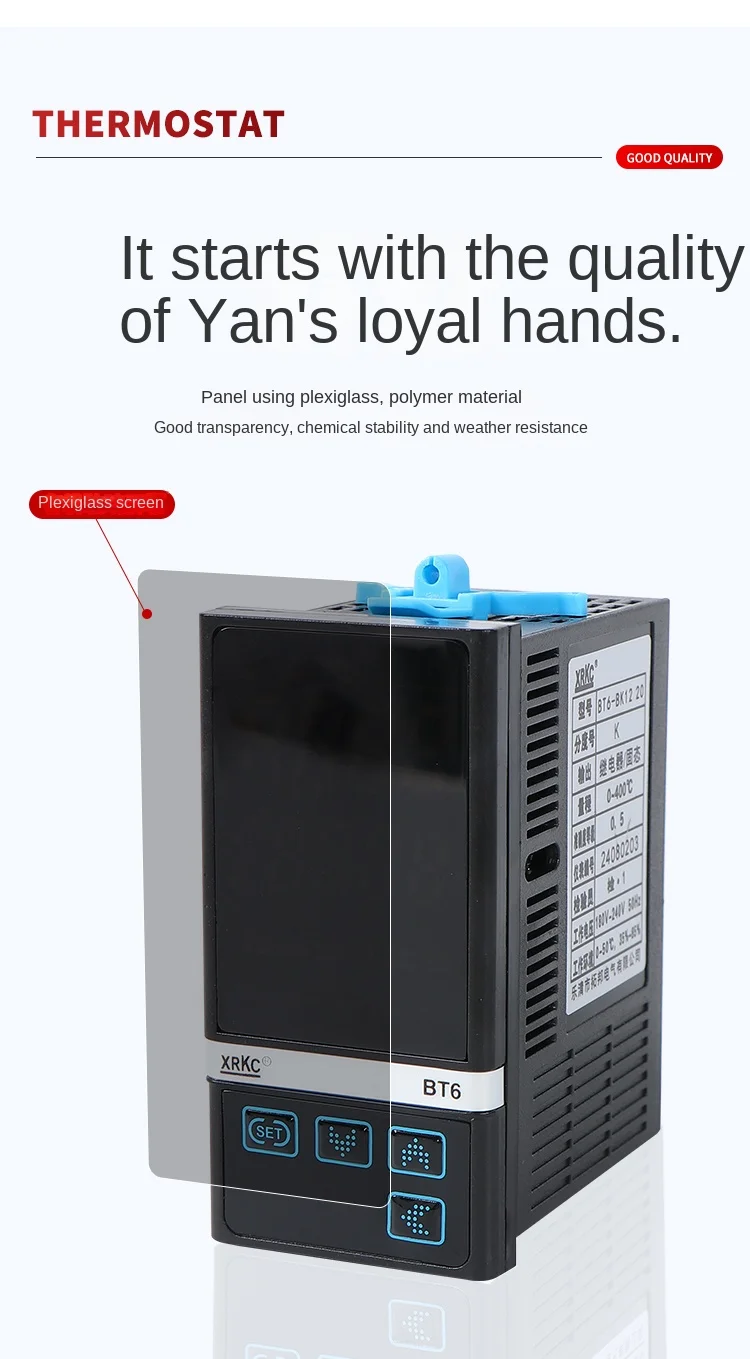

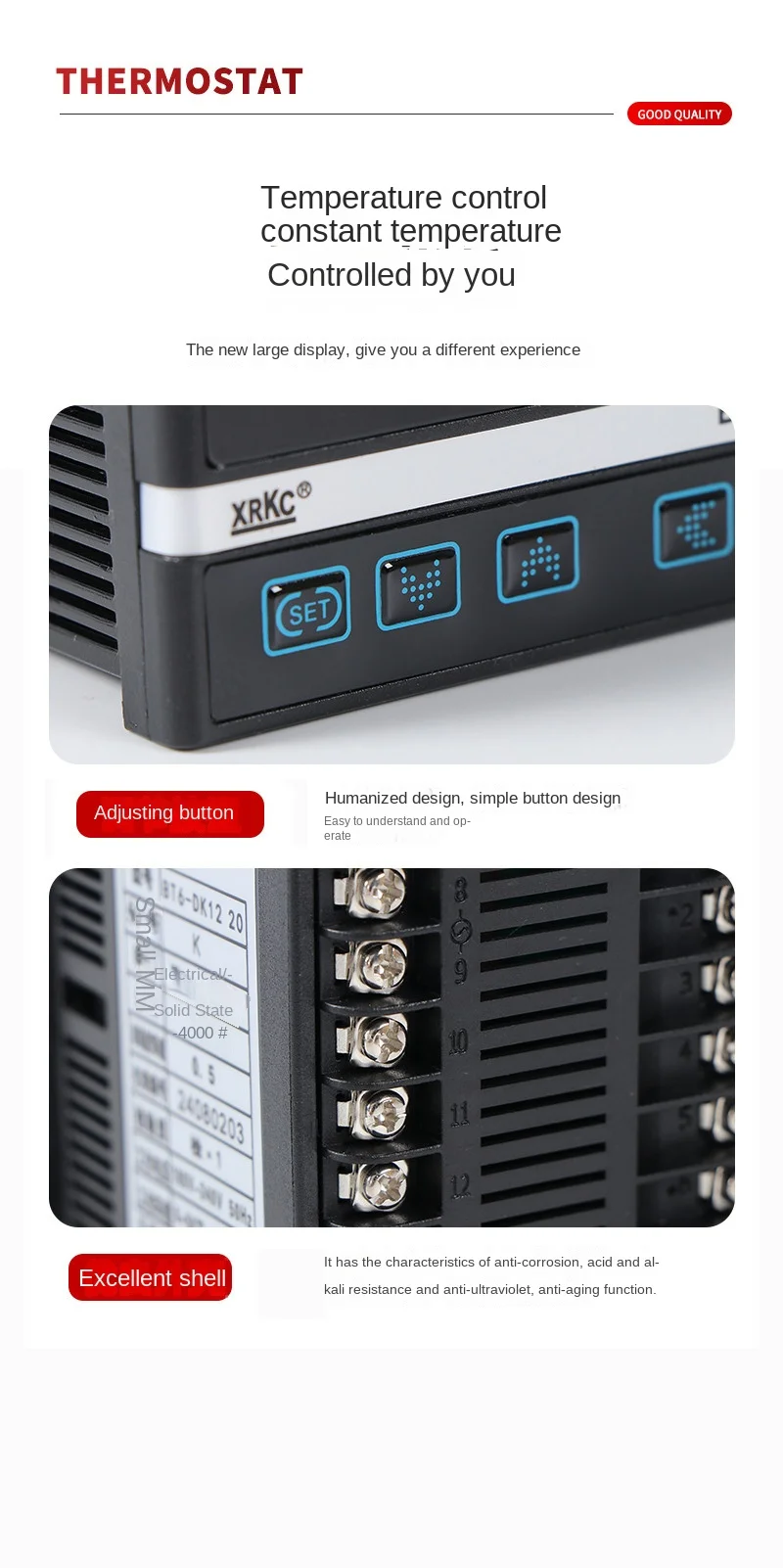

Shell Material: High toughness flame retardant ABS plastic
Certification: CE, RoHS international industrial certification
These unified parameters ensure excellent compatibility with mainstream global heating components and PLC systems.

Industry Applications & Practical Cases

After years of global market promotion, BT6-B has accumulated large quantities of verified practical application cases across hot stamping, food processing and laboratory testing industries.
In multiple Southeast Asian hot stamping packaging manufacturers’ production lines, the factory replaced discrete separate temperature and timer parts with integrated BT6-B; after five-month continuous batch production tracking, finished product reject rate caused by mismatched time-temperature dropped by roughly 22%, forming the core benchmark application case of this model.
In small food baking ovens and herbal drying equipment, programmable timing paired with stable PID keeps baking consistency and reduces color difference of finished foodstuff.
In lab constant-temperature aging cabinets and material test equipment, RS485 data upload facilitates centralized experimental data archiving and long-term performance analysis.
In small thermal forming and shoe embossing machinery, integrated dual-control design simplifies cabinet wiring and short equipment assembly cycle. Multiple European automation purchasing specialists comment the all-in-one design effectively cuts accessory procurement categories and stock capital occupation.

Commercial Value & Supply Chain Support

Selecting BT6-B integrated PID+timer thermostat brings multi-level economic benefits for machinery OEMs, automation integrators and cross-border component traders. All-in-one structure removes extra cost of independent timer accessories and shortens cabinet wiring labor expense; RS485 networking improves end equipment intelligent level and market added value; flexible OEM customization helps merchants escape fierce homogeneous price competition on cross-border B2B industrial market.

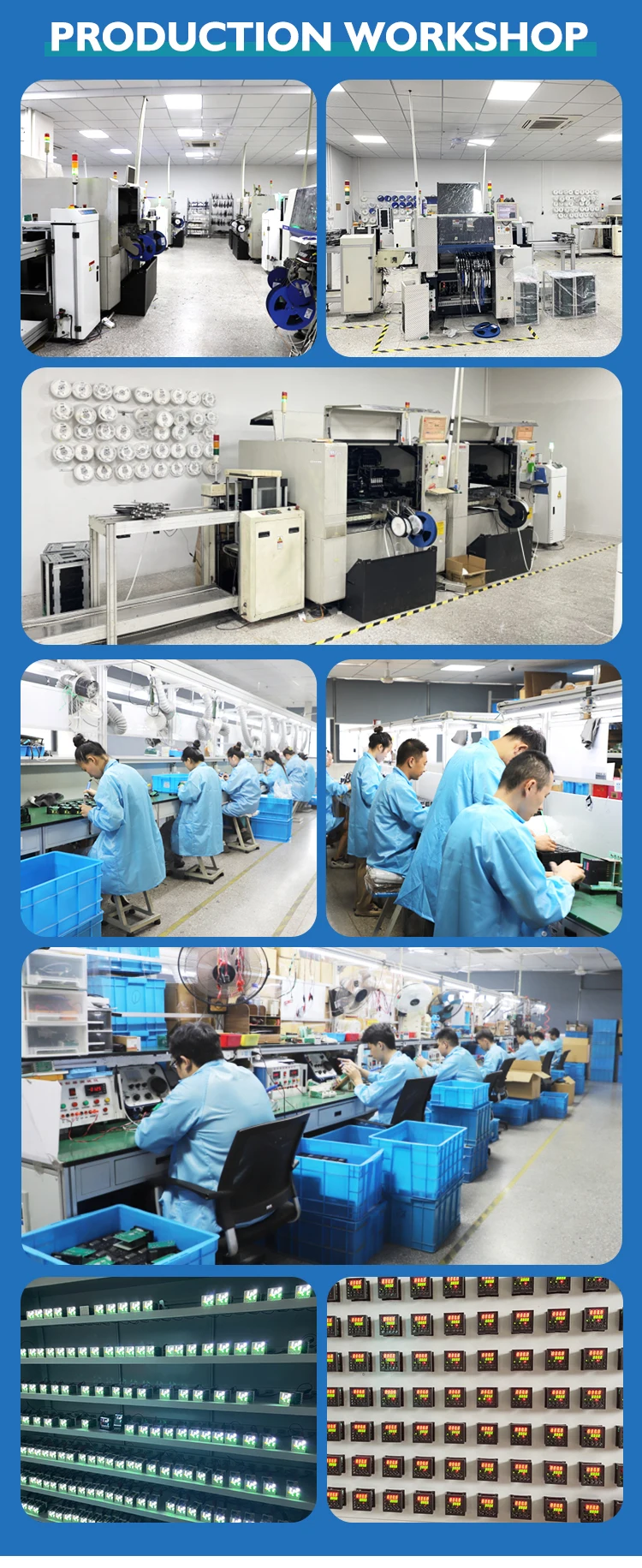

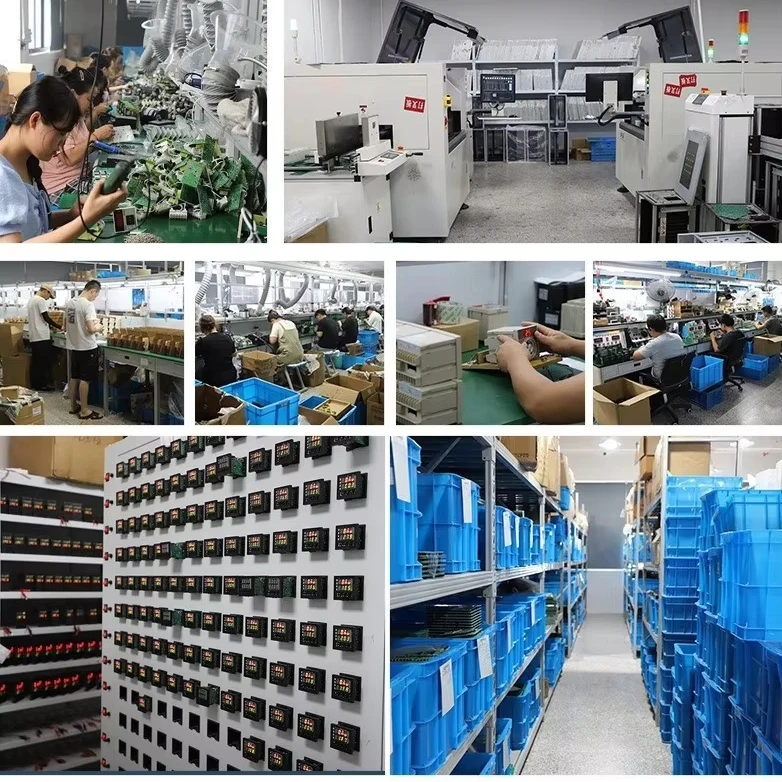

Suosite Electrical maintains sufficient ready stock of standard BT6-B specifications with automated assembly lines, supporting 48-hour quick delivery for spot orders and flexible batch production for all kinds of customized OEM demands including panel print and parameter preset. The enterprise’s full-time professional technical team provides full-cycle pre-sales parameter consulting, installation guidance and after-sales fault troubleshooting service. As a national high-tech enterprise with multiple circuit structural patents and CE certification, Suosite keeps continuous R&D iteration and stable mass production capacity to supply BT6-B series intelligent thermostats for worldwide industrial clients on a long-term basis.

Zhejiang Suosite Electric Technology Co., Ltd. is a manufacturer of high-precision temperature controllers, certified with CE, appearance patent, and new product certifications. The company offers a three-year warranty, lifetime after-sales service, supports customization, can deliver as fast as in 3 days, and accommodates small-batch custom orders as a direct source factory.
