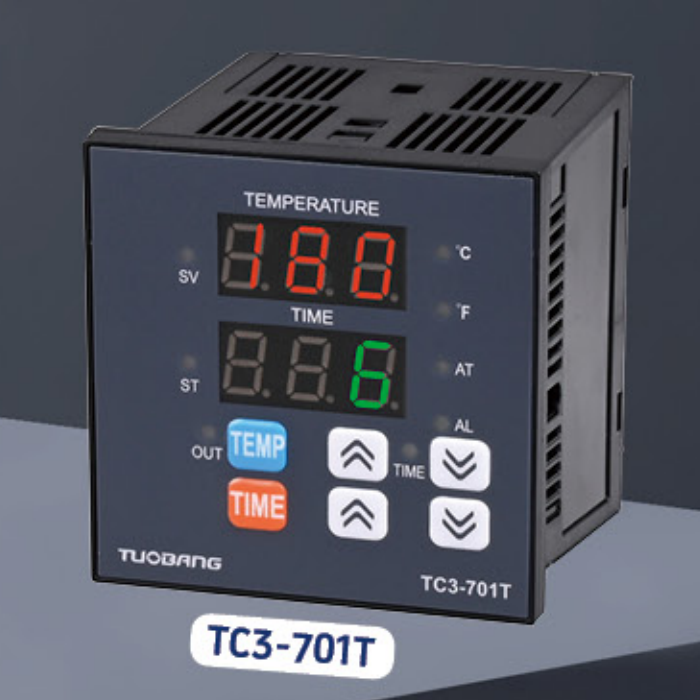

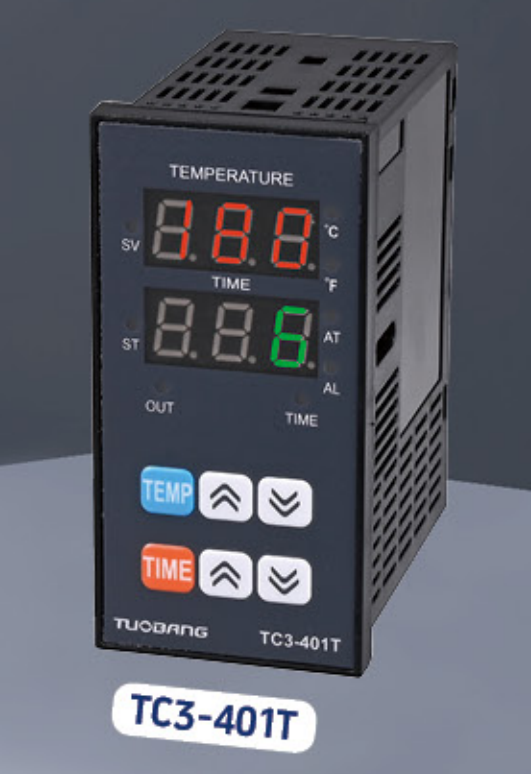

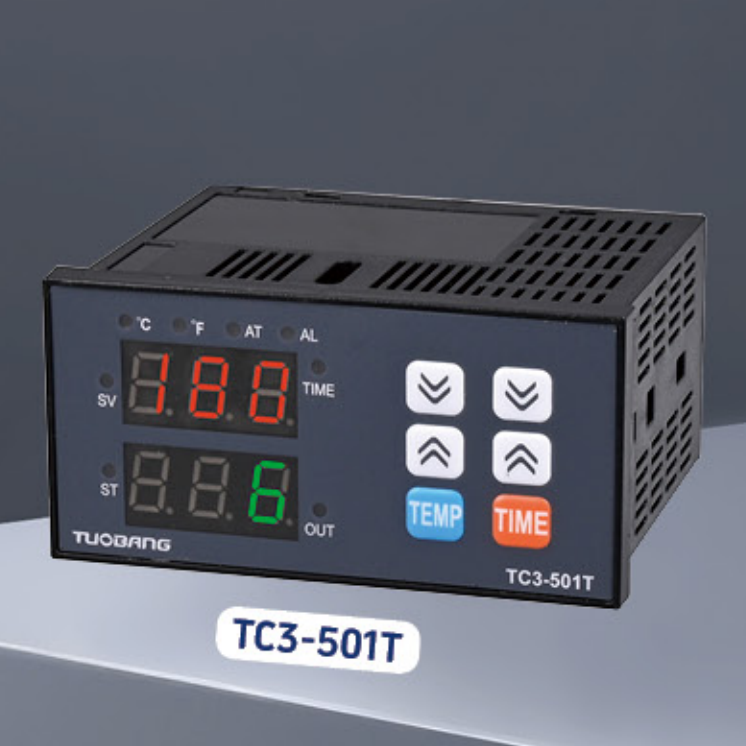

TC3 Simple temperature control time

Product Introduction

Product Overview & Core Application Orientation

The TC3 Simple Temperature Control Timer is a compact, cost-effective, and easy-to-operate dual‑function device that integrates precise temperature monitoring and time control, independently developed by Suosite Electrical for small industrial equipment, heating apparatus, and daily electrical appliances. Designed for users who need stable temperature control and simple timing functions, this instrument eliminates complex operations and redundant configurations, focusing on core performance while maintaining high reliability and durability. Unlike professional multi‑module control instruments, the TC3 series adopts a streamlined structure and intuitive operation logic, enabling users to complete parameter setting and startup within one minute without professional training. With more than 10 years of experience in industrial temperature control instruments and solid‑state relays, Suosite Electrical has created this practical controller to meet the needs of small equipment manufacturers, maintenance markets, and end users who pursue cost‑effective solutions. The TC3 Simple Temperature Control Timer is widely used in small heating equipment, electrical cabinets, agricultural equipment, and daily electrical appliances, providing stable temperature regulation and reliable time control for various scenarios with low complexity requirements.

Key Product Features

The TC3 Simple Temperature Control Timer is equipped with a full set of practical and user‑friendly features, making it extremely convenient for installation, operation, and daily maintenance. First, it adopts a dual‑function integrated design that combines temperature control and time control in one compact unit, replacing separate temperature controllers and timers, effectively saving installation space and reducing equipment costs. Second, the instrument uses a high‑brightness LED digital display with clear digits and high contrast, allowing users to easily read measured values, set values, and remaining time even in low‑light industrial environments. Third, it supports simple button operation with only a few function keys, enabling quick setting of temperature upper and lower limits and working time; the humanized operation interface avoids misoperation and improves use efficiency. Fourth, the TC3 series provides stable control output with relay output mode, which can directly drive small heaters, fans, contactors, and other actuators with strong load capacity and reliable action. Fifth, it has a power‑off memory function that automatically saves all set parameters; after power restoration, it can resume working without reconfiguration, avoiding abnormal operation caused by sudden power failure. Sixth, the instrument adopts a standard panel installation structure with uniform size and simple wiring, suitable for various small equipment and control boxes, greatly reducing installation and commissioning time. In addition, the shell is made of high‑strength flame‑retardant material with good heat resistance and insulation performance, improving operational safety and service life.

Technical Advantages & Stability Performance

Relying on Suosite Electrical’s strong technical accumulation and mature manufacturing system in industrial automation instruments, the TC3 Simple Temperature Control Timer demonstrates outstanding technical advantages and long‑term reliability in practical applications. Its core control circuit uses a high‑performance industrial microprocessor with fast operation speed and strong anti‑interference ability, ensuring stable operation even in environments with frequent electromagnetic interference such as motor startup and high‑power equipment operation. The temperature measurement module adopts high‑precision sampling technology with low drift and high accuracy, ensuring stable and consistent data output for a long time. The control logic uses an optimized algorithm that avoids frequent start‑stop of loads caused by slight signal fluctuations, reducing equipment wear and extending the service life of connected devices. The whole machine has undergone strict aging tests, insulation tests, and high and low temperature tests before leaving the factory, fully meeting industrial‑grade quality standards. With its compact structure, reasonable layout, and high‑quality components, the TC3 controller achieves a long mean time between failures (MTBF), supporting long‑term uninterrupted operation. Compared with similar products on the market, it has higher cost performance, more stable performance, and lower failure rate, which have been fully verified by mass applications worldwide.

Technical Parameters & Specifications

To help engineers, purchasers, and maintenance personnel make accurate selections and use the product correctly, the TC3 Simple Temperature Control Timer provides complete and clear technical parameters covering all key indicators. Temperature input supports common thermocouples (K type) and RTD (PT100), with a measurement range of 0–400°C, covering most conventional temperature control needs of small industrial equipment and electrical appliances. Control accuracy reaches ±1°C, meeting the precision requirements of simple temperature control scenarios. Time control range is 0–999 minutes, adjustable according to actual needs, suitable for various timing control applications. Display mode uses a high‑brightness LED digital tube, real‑time display of current temperature, set temperature, and remaining time, intuitive and clear. Control output is relay output (250VAC 3A), with strong load capacity, suitable for connecting small heaters, fans, contactors, and other equipment. Power supply supports AC220V (50/60Hz) and DC24V, adapting to different power supply environments globally. Operating environment ranges from -10°C to +60°C, humidity 35%–85%RH (non‑condensing), with strong environmental adaptability. Installation method is panel embedded installation with standard opening size, convenient and fast. Protection performance features flame‑retardant shell, anti‑interference design, and reverse connection protection, improving overall safety and stability. All parameters comply with international industrial instrument standards, ensuring good compatibility and interchangeability for global users.

Industry Applications & Practical Cases

The TC3 Simple Temperature Control Timer is widely used in many fields that require simple temperature control and timing functions, with remarkable application effects in small and medium‑sized automation equipment and daily electrical appliances. In small heating equipment such as sealing machines, small ovens, and heating tables, it provides stable temperature control and timing operation to ensure processing quality and improve work efficiency. In electrical control cabinets, it helps monitor and regulate temperature, preventing overheating or condensation and extending the service life of internal components. In agricultural equipment such as small greenhouses and breeding equipment, it maintains suitable temperature and controls working time, creating a good growth environment for crops and livestock. In daily electrical appliances such as water heaters, heating pads, and ovens, it provides safe and reliable temperature and time control, enhancing product safety and user experience. In mechanical equipment maintenance market, it is an ideal replacement for original controllers due to its easy installation, simple operation, and high cost performance. Many equipment manufacturers have reduced product failure rates, simplified production processes, and improved market competitiveness after using the TC3 Simple Temperature Control Timer. Real customer feedback confirms that this controller effectively reduces system complexity, lowers assembly costs, and provides stable performance for long‑term use.

Commercial Value & Supply Chain Support

Choosing the TC3 Simple Temperature Control Timer brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, and end users. In terms of production cost, its dual‑function integration reduces the number of components, lowers wiring and assembly time, and cuts manufacturing and maintenance costs. In terms of equipment performance, stable control improves product quality, reduces defect rates, and enhances brand reputation. For global customers, Suosite Electrical provides strong supply chain assurance: with mature production lines, sufficient inventory, and fast delivery capacity, most standard models can be shipped within 48 hours to meet urgent project schedules. The company supports ODM/OEM customization, allowing personalized customization of appearance, logo, parameters, and functions to meet different brand and project needs. Backed by a professional technical team, Suosite Electrical provides full‑life‑cycle services including pre‑sales selection, on‑site debugging guidance, and after‑sales support. As a national high‑tech enterprise with CE certification and multiple patents, Suosite Electrical continues to invest in R&D and quality control, providing reliable, cost‑effective TC3 Simple Temperature Control Timers and stable supply services for global industrial automation customers.

Power on

Display: Top row: inp, bottom row: C/F - K, delay for two or three seconds, top row shows SLH, bottom row shows SLL

Menu description: SV represents the hot stamping time, and PV represents the measured value

Parameter description

User parameters

Under normal measurement and control conditions, pressing the setting key once will allow you to enter the user control target value setting. Press the setting key again and the setting is complete.

Engineer parameters

Press and hold the setting key for 3 seconds to enter the engineer parameter setting state. If you want to exit, press and hold the setting key for 3 seconds. If you want to set the next parameter, press and hold the setting key once. It will automatically exit about one minute after no buttons are pressed.

Shape and opening size
