XRKC SSR-25DA High Power Miniature 24-480VAC 3-32VDC Single-phase Contactless DC-AC 40/60/100DA Industrial Flip-style Solid
The XRKC SSR‑DA series single‑phase solid state relay is a high‑performance, contactless DC‑to‑AC switching module professionally designed for industrial automation, heating systems, packaging machinery, and power control equipment.
- Overview
- Recommended Products
Product Introduction
Product Overview & Core Design Positioning
The XRKC SSR‑DA series single‑phase solid state relay is a high‑performance, contactless DC‑to‑AC switching module professionally designed for industrial automation, heating systems, packaging machinery, and power control equipment. As a compact, high‑power flip‑style relay, it uses 3–32VDC control signals to safely switch 24–480VAC loads, providing maintenance‑free, silent, and fast switching for high‑frequency industrial applications. Available in 25DA, 40DA, 60DA, and 100DA current ratings, this series satisfies diverse power requirements while maintaining a consistent miniature footprint for easy layout and installation.
Built by Suosite Electrical, a leading industrial control component manufacturer with over 10 years of expertise, the XRKC SSR‑DA series emphasizes stability, durability, and thermal efficiency. Its fully sealed, dust‑resistant structure and advanced chip technology deliver reliable performance in harsh factory environments. Whether used for heating control, motor control, lighting regulation, or PLC output matching, this solid state relay improves system stability, extends equipment life, and reduces downtime.
Key Product Features
The XRKC SSR‑DA series comes with a full set of industrial‑grade features optimized for real‑world applications.
First, it uses a contactless electronic switching design with no moving parts, eliminating spark interference, mechanical wear, and noise, supporting hundreds of thousands of switching cycles.
Second, it supports wide voltage DC control (3–32VDC), compatible with PLCs, temperature controllers, and single‑chip outputs for universal system integration.
Third, it switches high‑voltage AC loads (24–480VAC), covering most industrial power environments without extra converters.
Fourth, it offers four power models (25DA, 40DA, 60DA, 100DA) to match small heaters to high‑power industrial loads.
Fifth, it features zero‑crossing triggering to minimize inrush current, protect loads, and extend service life.

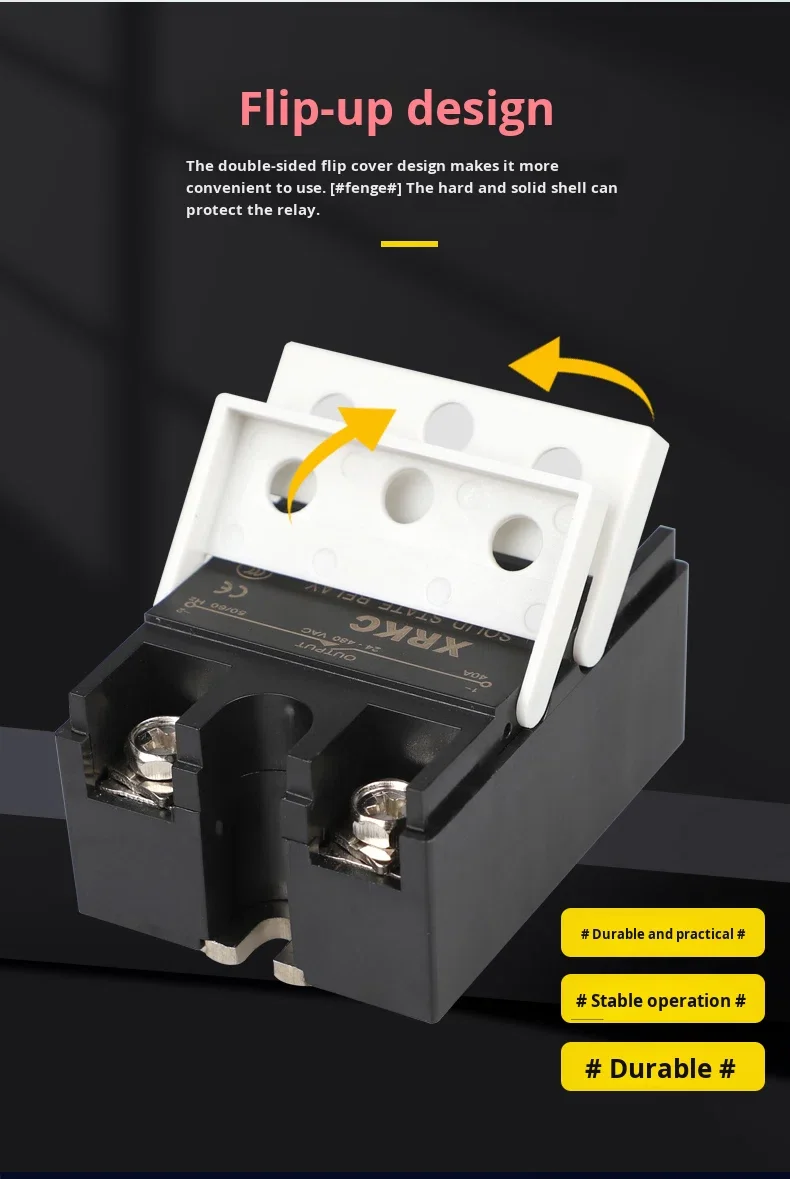

Sixth, its miniature flip‑style housing saves cabinet space while ensuring good heat dissipation.
Seventh, it has fast response speed (microsecond level), ideal for high‑frequency automatic control systems.
Finally, it includes overcurrent, overvoltage, and overtemperature protection to enhance safety and stability.
Technical Advantages & Reliability Performance
Backed by Suosite Electrical’s R&D capability and strict quality control, the XRKC SSR‑DA series delivers exceptional technical advantages and long‑term reliability.
The core uses high‑power thyristor chips with low internal resistance, low heat generation, and strong overload capacity for stable full‑load operation.
Optoelectronic isolation between input and output ensures strong anti‑interference performance, maintaining stable switching near inverters and motors.
Advanced thermal design and thermally conductive materials lower operating temperature and improve long‑term durability.
Each unit undergoes 100% aging, insulation, and thermal testing before shipment, meeting industrial quality standards.
With a mean time between failures (MTBF) exceeding 100,000 hours, it supports 24/7 continuous operation.
Compared with traditional electromagnetic relays, it has longer life, higher efficiency, lower failure rates, and lower maintenance costs, making it widely trusted in automation.

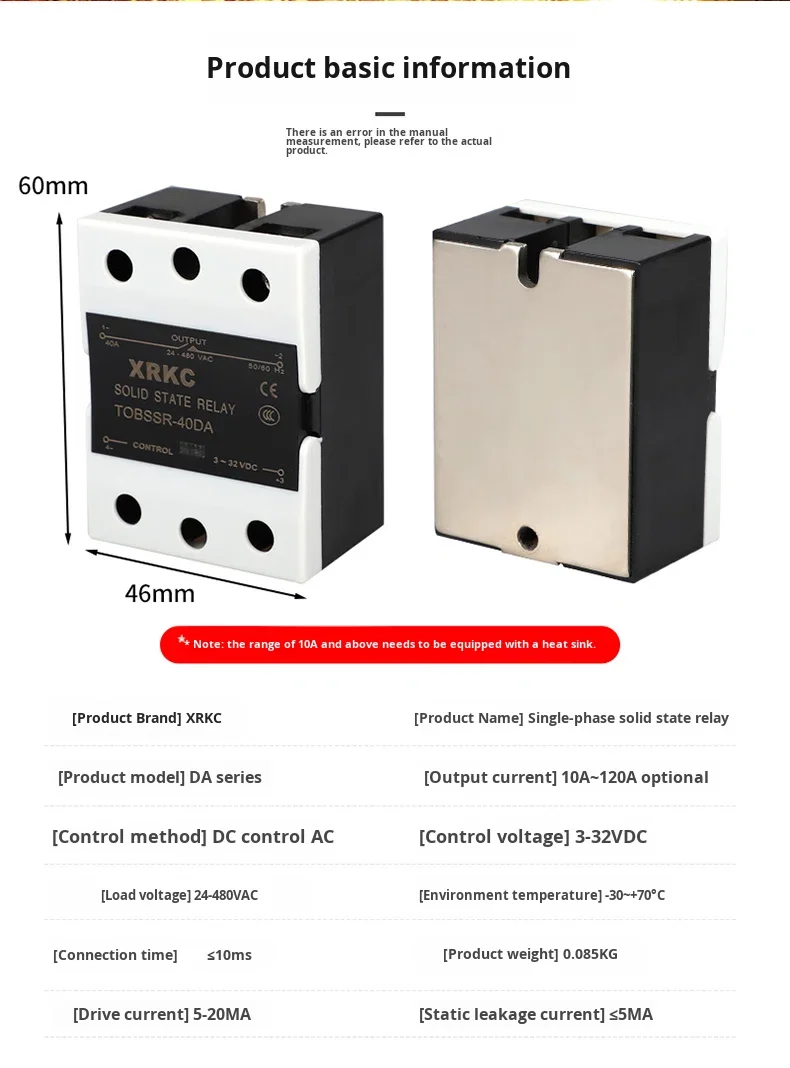

Technical Parameters & Specifications
To support accurate selection and engineering design, the XRKC SSR‑DA series provides complete and clear specifications.
Series: XRKC SSR‑25DA / 40DA / 60DA / 100DA
Control type: DC control AC, single‑phase, zero‑crossing
Input control voltage: 3–32VDC
Input current: ≤15mA
Output load voltage: 24–480VAC
Output current: 25A / 40A / 60A / 100A
On/off mode: Non‑contact electronic switch
Response time: ≤10ms
Insulation voltage: ≥2500VAC
Operating temperature: -30°C to +80°C
Isolation: Optoelectronic isolation
Protection: Overcurrent, overvoltage, surge protection
Certifications: CE compliant, RoHS
These parameters ensure high compatibility and interchangeability in global industrial systems.
Industry Applications & Practical Cases
The XRKC SSR‑DA series is widely used in industrial fields requiring stable, high‑frequency switching, with proven performance.
In heating equipment (plastic machinery, ovens, packaging machines), it precisely controls heaters with zero‑crossing logic, improving temperature uniformity and product yield.
In automation systems (assembly lines, robots, control cabinets), it serves as a reliable PLC output module for fast and safe load driving.
In lighting and electrical control, it enables dimming and switching with no spark or noise.
In food machinery, printing equipment, and medical devices, it provides clean, stable, and long‑life switching.
In new energy equipment and power distribution, it ensures safe and reliable power regulation.
Customer feedback confirms reduced downtime, lower maintenance costs, and improved production stability after adopting this series.
Commercial Value & Supply Chain Support
Choosing the XRKC SSR‑DA series brings strong commercia
l value and reliable supply support to manufacturers, integrators, and distributors worldwide.
Contactless design reduces replacement and maintenance costs, boosting equipment reliability and customer satisfaction.
High efficiency and fast response cut energy use and boost productivity.
Standard dimensions and flexible models simplify inventory, design, and assembly.
Suosite Electrical provides strong supply support: mature production lines, sufficient stock, and 48‑hour fast delivery for standard models.
The company supports OEM/ODM customization including labeling, wiring, and packaging to meet brand requirements.
A professional technical team offers full‑life‑cycle support from selection to after‑sales service.
As a national high‑tech enterprise with CE and patents, Suosite Electrical maintains strict quality and continuous innovation.
The XRKC SSR‑DA series provides stable, high‑power, maintenance‑free solid state relay solutions for global industrial customers.
About Product
Highlight
Miniature Size: Ideal for tight spaces with its compact design.
Sealed Protection: Resistant to dust, moisture, and extreme temperatures.
Industrial Protection: Suitable for harsh environments due to protective features.
Global Support: Provides pre-sales consulting, customization, and 24-hour post-sales service.
