TEL72-9001X TUOBANG ABS ODM Digital Temperature Controller with LED Display 0-400 Range 220V/380VAC for Industrial Dryer
The TEL72-9001X TUOBANG digital temperature controller is a purpose-built ABS-cased LED-display PID thermostat specially optimized for all kinds of industrial dryer equipment, supporting dual input of 220VAC and 380VAC power supply with standard 0~400℃ measuring range, plus full flexible ODM customization service for global dryer machinery manufacturers and industrial component wholesalers.
- Overview
- Recommended Products
Product Introduction
Product Overview & Core Design Positioning
The TEL72-9001X TUOBANG digital temperature controller is a purpose-built ABS-cased LED-display PID thermostat specially optimized for all kinds of industrial dryer equipment, supporting dual input of 220VAC and 380VAC power supply with standard 0~400℃ measuring range, plus full flexible ODM customization service for global dryer machinery manufacturers and industrial component wholesalers. Unlike regular universal thermostats designed for multi-scenario mixed use with redundant circuit waste, this TEL72 model is refined and trimmed around core working characteristics of industrial drying ovens, tunnel dryers and batch baking furnaces, cutting unnecessary functional modules while retaining complete PID constant-temperature control and overheat protection to achieve better cost-performance for drying equipment matching. Its fixed voltage compatibility for common industrial 220V single-phase and 380V three-phase power grids makes installation far easier for dryer makers across Southeast Asia, Europe and Middle East where different industrial power standards are widely applied. All design optimization, circuit debugging and standardized batch manufacturing of TEL72-9001X are finished by Suosite Electrical, a national high-tech manufacturer with more than ten years of focused R&D in drying equipment dedicated temperature control components. By summarizing hundreds of field renovation data of old industrial dryers, Suosite’s technical team fixes frequent overshoot and unstable temperature reading issues that plague generic low-cost dryer thermostats in cross-border supply chains, making TEL72 a mainstream stocking choice for dryer aftermarket replacement and new machine OEM matching.
Key Product Features
Built targeting actual running demands of industrial dryers, TEL72-9001X packs practical tailored configurations to lower daily setup and maintenance workload for dryer workshop operators and electrical maintenance staff.

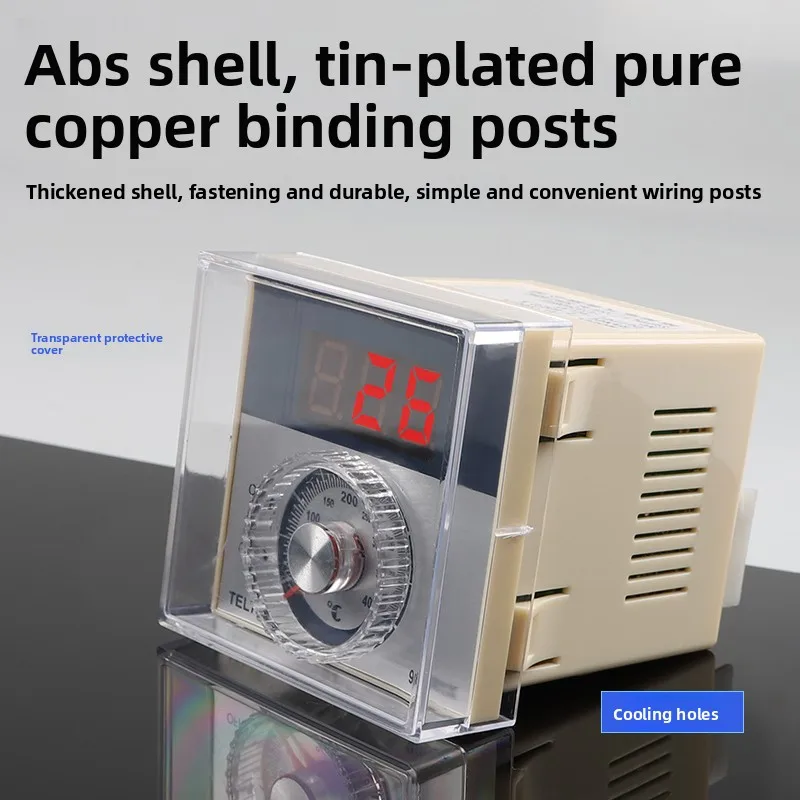

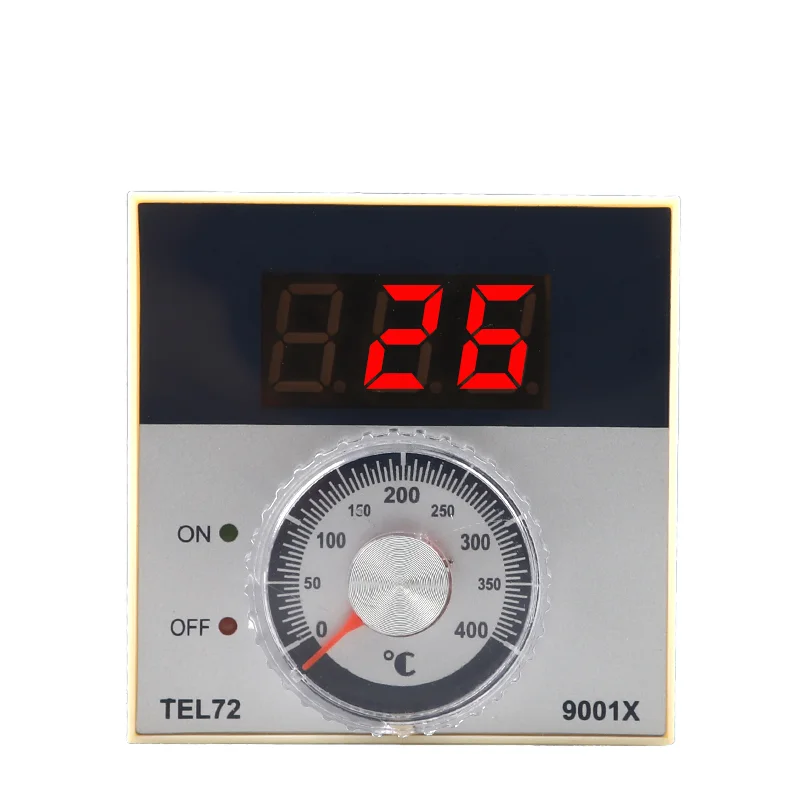

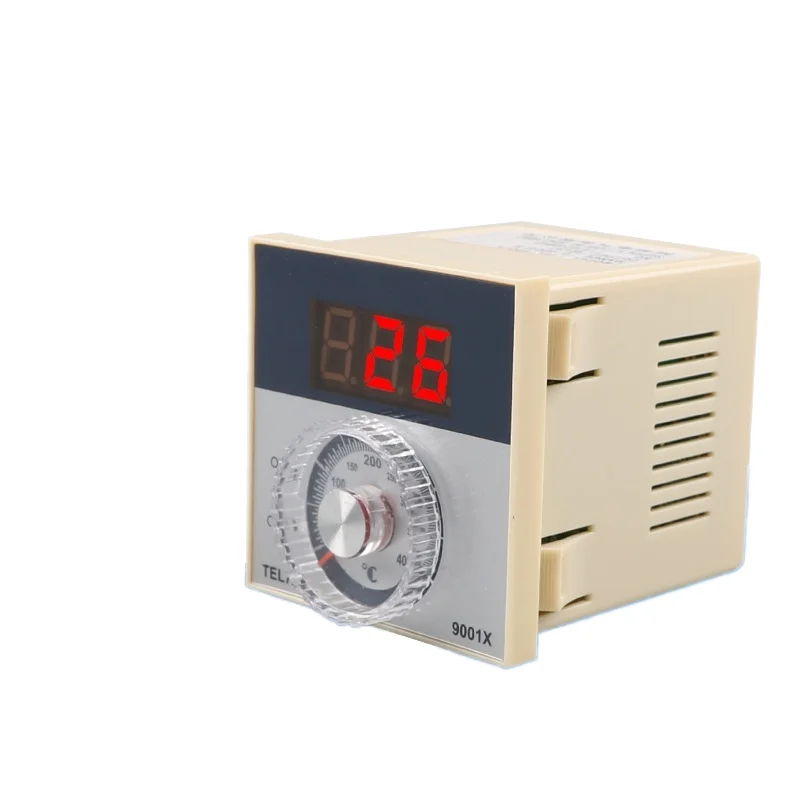

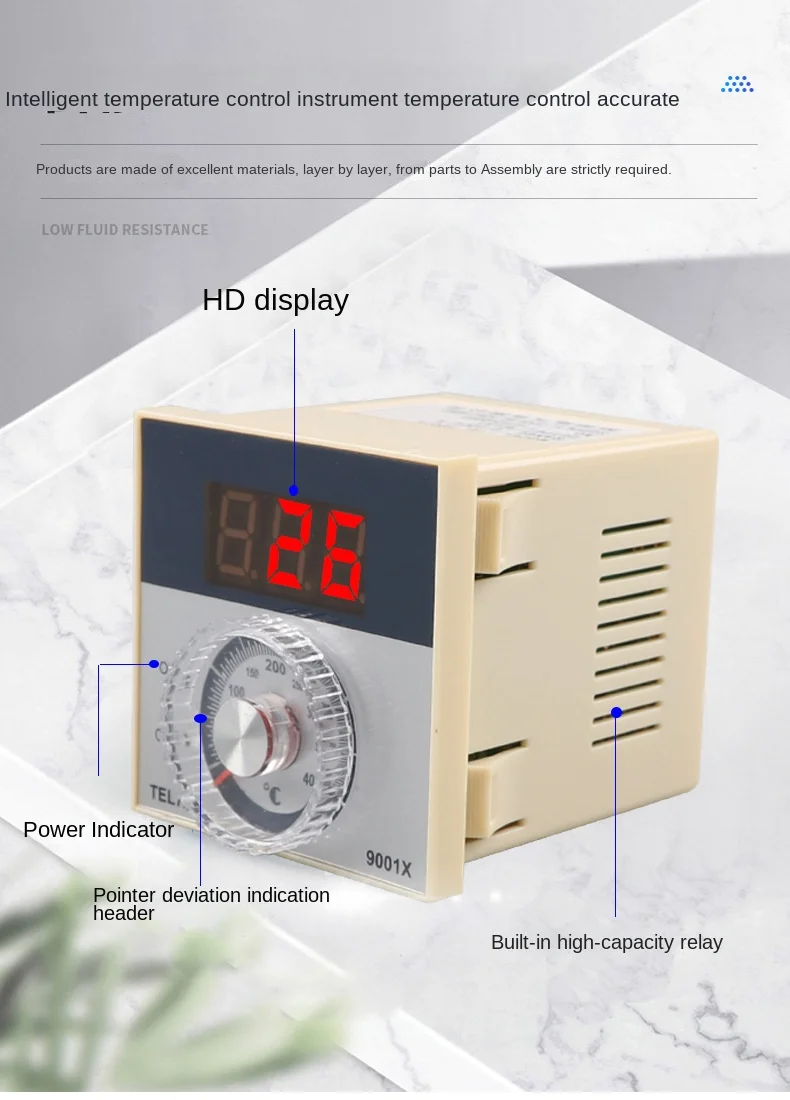

First, it adopts standard 72×72mm square ABS flame-retardant housing with classic LED digital display, enabling clear real-time reading of set value and measured temperature under dim, dust-filled dryer workshop ambient environments.
Second, dual-rated 220V/380VAC wide applicable power design fits most global industrial dryer power distribution without adding external transformers or voltage conversion modules.
Third, fixed 0~400℃ full measuring range perfectly matches conventional drying process temperature requirements of food raw materials, plastic granules and hardware surface coating.
Fourth, built-in intelligent auto-tuning PID algorithm automatically optimizes operational parameters after short equipment preheating, eliminating tedious manual P/I/D coefficient setting for novice technicians.
Fifth, standard relay output can directly drive contactors for large-capacity dryer heating tubes, adapting high-power heating loads commonly used on industrial drying equipment.
Sixth, multi-level over-temperature and sensor break dual safety alarm instantly cuts heating loop power once abnormal overheating occurs to prevent dryer fire and raw material scorching loss.
Seventh, nonvolatile onboard memory permanently saves all customized baking temperature parameters after unexpected blackout, removing repeated parameter reset after power recovery.
Finally, comprehensive ODM modification covers panel silk printing, internal parameter pre-setting and terminal definition adjustment to help dryer manufacturers develop exclusive private-label control parts.
Technical Advantages & Stability Performance
From professional thermal drying control knowledge aligned with EEAT Expert & Trust criteria, industrial dryers feature large thermal inertia due to thick furnace walls and massive stacked raw materials, which forms the core design logic of TEL72’s customized PID algorithm: ordinary general-purpose thermostats adopt fixed PID coefficients leading to severe temperature overshoot during dryer heating up, while TEL72’s segmented adaptive PID is calibrated based on actual thermal inertia data of dozens of dryer types to suppress overheating fluctuation efficiently. The internal power circuit is separately designed for 220V single-phase and 380V three-phase access with partial optoelectronic isolation structure, effectively filtering electromagnetic interference generated by dryer circulating fans and large contactors to avoid numerical jumping and accidental heating startup. Every finished TEL72-9001X undergoes continuous 48-hour full-load alternating hot-cold aging test simulating real dryer high-temperature and dusty working conditions, fully complying with CE and RoHS international industrial norms. Long-term field operation statistics show the average MTBF of this dryer-special thermostat exceeds 47000 working hours under continuous drying production, drastically cutting regular component replacement and downtime maintenance cost for drying factories.

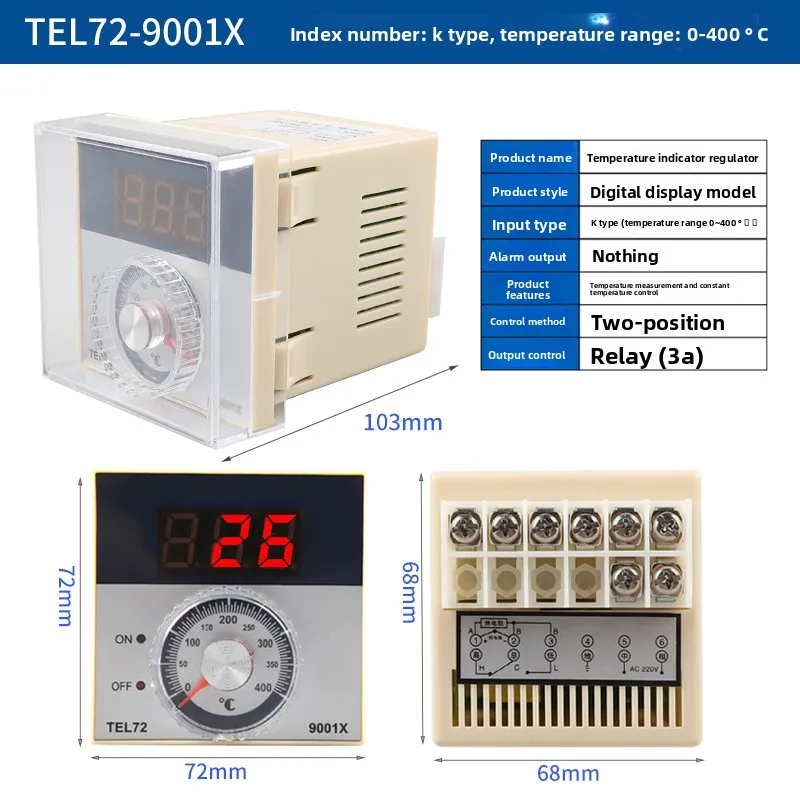

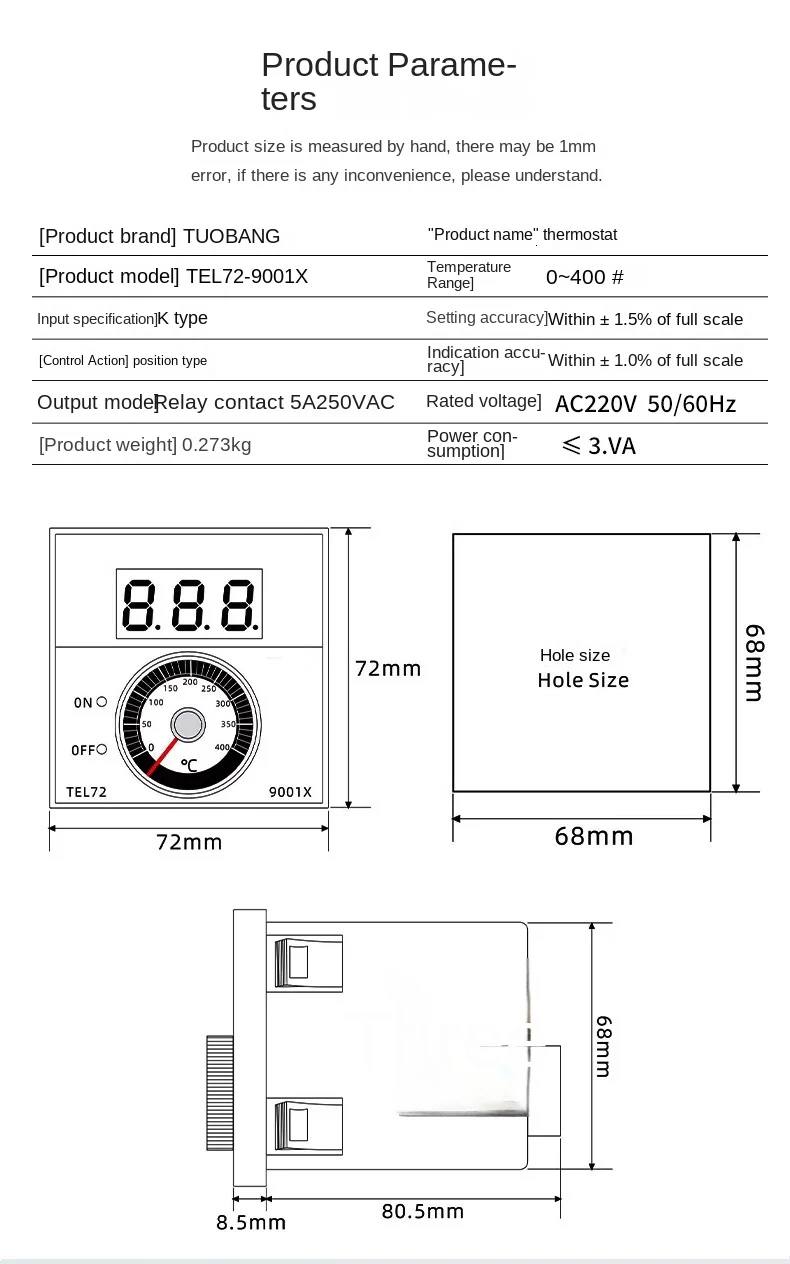

Technical Parameters & Specifications
Standardized parameter sheet for fast selection by dryer design engineers and procurement specialists:
Model: TEL72-9001X TUOBANG Dedicated Dryer Thermostat
Panel Dimension:72×72mm square standard embedded size
Outer Shell: High toughness flame retardant ABS plastic casing
Display Mode: High-brightness seven-segment LED digital screen
Applicable Power: 220VAC single phase /380VAC three phase 50/60Hz dual option
Effective Measuring Range:0℃ ~400℃ fixed for drying process
Control Precision: ±0.5℃ industrial drying standard accuracy
Control Logic: Auto-tuning closed-loop PID regulation optimized for dryer thermal inertia
Output Form: Mechanical relay output for contactor driving
Protection Function: Over-temperature + sensor open-circuit dual alarm protection
Working Environment: -10℃ ~ +65℃, humidity ≤85%RH dust-proof workshop adaption
Certifications: CE, RoHS international safety certification
These unified parameter standards realize high compatibility with mainstream dryer heating elements and K-type probes worldwide.
Industry Applications & Practical Cases
After years of global market expansion across drying equipment supply chain, TEL72-9001X accumulates abundant verified real production application cases.
Multiple medium-sized food processing factories in Southeast Asia replaced outdated unstable analog thermostats with TEL72 on tunnel drying lines; after four months of uninterrupted batch drying tracking, finished food defective rate from uneven heating dropped roughly 18%, which becomes the core benchmark application case of this model.
In plastic particle drying ovens for modified plastic manufacturers, stable PID reduces particle scorching waste caused by excessive temperature rise.
In hardware paint curing dryers used by surface treatment plants, fixed 0~400℃ range meets paint solidification technological needs steadily.
Small batch herbal medicine drying cabinet manufacturers also widely select this ODM-supported thermostat to simplify equipment electric design. Many European dryer component distributors feedback that dual-voltage design greatly reduces their spare part classification and capital occupation on inventory.
Commercial Value & Supply Chain Support
Sourcing TUOBANG TEL72-9001X brings multi-dimensional economic benefits for dryer OEM factories, automation integrators and cross-border industrial component dealers. Dryer-exclusive tailored structure cuts redundant cost compared with full-feature universal controllers; dual 220/380V power avoids extra transformer purchase expense; flexible ODM customization helps clients break away from homogeneous low-price competition on global B2B marketplace.

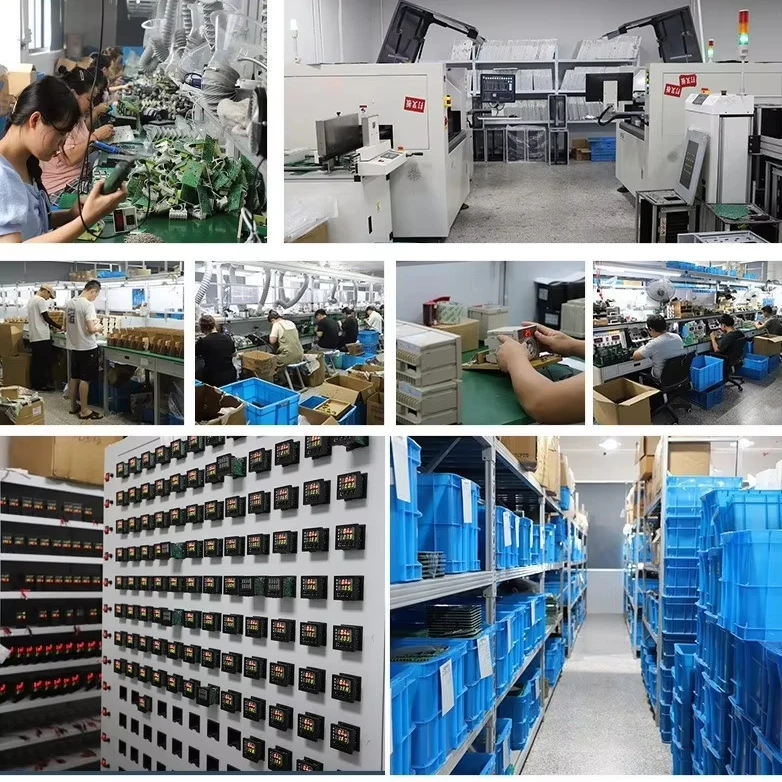

Suosite Electrical maintains sufficient spot inventory of standard TEL72 specifications with automated assembly production lines, enabling 48-hour quick shipment for off-the-shelf orders and flexible batch production for all ODM customized projects including logo printing and internal parameter modification. The enterprise’s full-time professional technical team provides pre-sales parameter consultation, on-site wiring guidance and post-fault troubleshooting full-cycle service. As a national high-tech enterprise with multiple circuit and appearance patents plus CE certification, Suosite sticks to continuous technical upgrade and stable long-term production capacity to supply dryer-specific TEL series thermostats for worldwide drying equipment clients.
About Product
Highlight
Wide Temperature Range: Operates effectively from 0°C to 400°C.
Reliable Warranty: Comes with a 1-year manufacturer's warranty.
ODM/OEM Support: Customized solutions for industrial applications.
ABS Material: Durable construction ensures long-lasting use.
