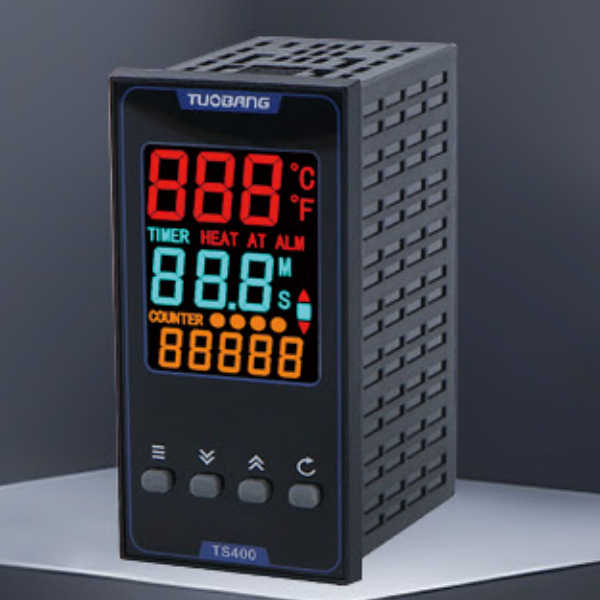

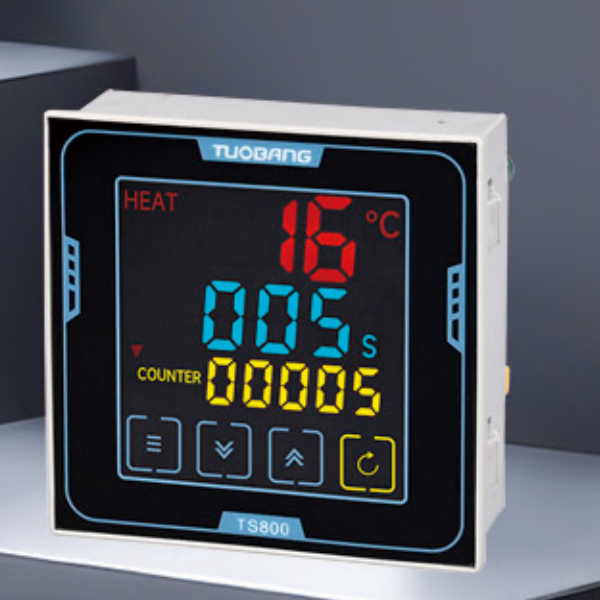

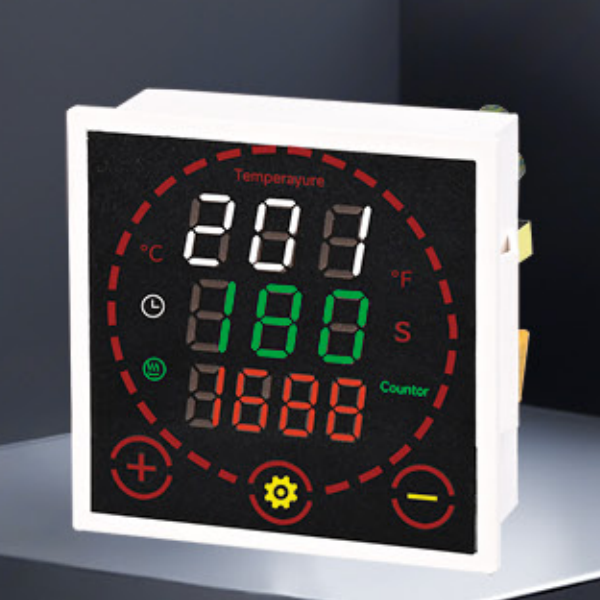

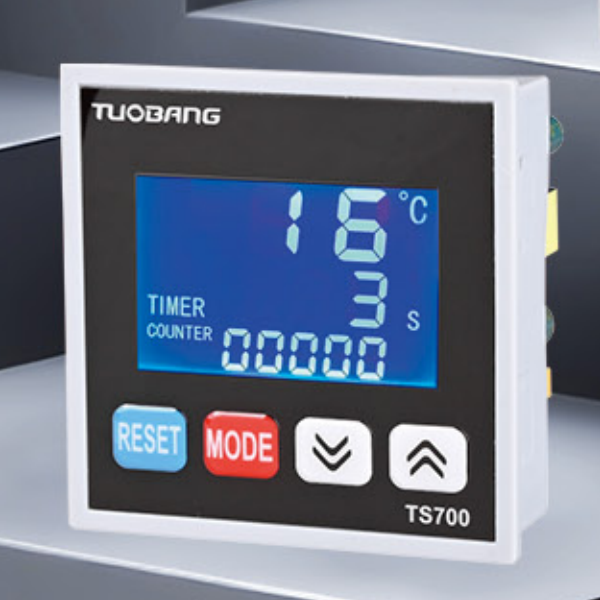

TS Three-in-one controller

Product Introduction

Product Overview & Core Functionality

The TS Three-in-one controller is an integrated, high‑reliability control device independently developed by Suosite Electrical for industrial automation, electrical equipment, and small power equipment systems. As a compact all‑in‑one solution, it combines measurement, display, and control into a single unit, replacing traditional separate components such as sensors, indicators, and independent control modules. This integration greatly simplifies circuit design, lowers wiring complexity, and reduces failure points, making it ideal for manufacturers and system integrators pursuing high efficiency and space saving. Built on over a decade of expertise in industrial control instruments and solid‑state relays, Suosite Electrical designed the TS series to meet long‑term stable operation in harsh industrial environments. It supports multiple common input signals, provides stable control outputs, and features intuitive operation, making it suitable for mass matching in automated production lines, electrical cabinets, heating equipment, and small mechanical equipment. Whether for new equipment development or equipment upgrading, the TS Three-in-one controller delivers stable performance, easy configuration, and cost‑effective control, helping users improve equipment stability while lowering overall costs.

Key Product Features

The TS Three-in-one controller comes with a full set of practical and user‑friendly features that make installation, operation, and maintenance extremely convenient. First, it adopts a true three-in-one integrated structure, integrating signal acquisition, real‑time data display, and automatic control output, eliminating the need for additional matching components and greatly simplifying the electrical system. Second, it supports multiple signal input types, including common thermocouples, RTDs, voltage, and current signals, ensuring wide compatibility with different industrial sensors and meeting diverse application scenarios. Third, the controller is equipped with a high‑definition LCD display that clearly shows measured values, set values, and output statuses, with high contrast and easy visibility even in low‑light industrial environments. Fourth, it provides stable and reliable control output, supporting relay and solid‑state relay driving modes to match heaters, contactors, fans, valves, and other actuators. Fifth, the device has power-off parameter memory, automatically saving all settings to avoid reconfiguration after power restoration, enhancing operational continuity. Sixth, it uses a standard panel mounting size with simple wiring terminals, enabling fast installation and commissioning, which significantly reduces on-site labor time. In addition, the TS series features a flame‑retardant shell, solid structure, and strong anti‑interference capacity, ensuring long‑term durability in complex working conditions.

Technical Advantages & Stability Performance

Backed by Suosite Electrical’s strong R&D capability and mature manufacturing system, the TS Three-in-one controller shows outstanding technical advantages and reliability in practical applications. Its core control circuit uses an industrial‑grade microprocessor with high operating speed and strong anti‑interference performance, maintaining stable operation even in environments with frequent electromagnetic interference, such as motor startups and high‑power equipment operation. The measurement module adopts high‑precision sampling technology with low drift and high accuracy, ensuring stable and consistent data output for a long time. The control logic uses an optimized algorithm that avoids frequent switching caused by signal fluctuations, reducing mechanical wear and extending the service life of connected equipment. The entire device undergoes strict aging testing, insulation testing, and high and low temperature testing before leaving the factory, meeting industrial‑grade quality standards. With its compact structure, reasonable layout, and high‑quality components, the TS controller achieves a long mean time between failures (MTBF), supporting 24/7 uninterrupted operation. Compared with similar products on the market, it has higher integration, better stability, stronger compatibility, and lower failure rates, which have been fully verified by mass applications worldwide.

Technical Parameters & Specifications

To help engineers, purchasers, and maintenance personnel make accurate selections and use the product correctly, the TS Three-in-one controller provides complete and clear technical parameters. Input types support thermocouples (K, J, E, T), RTD (PT100), DC voltage (0–5V, 0–10V), and DC current (4–20mA), covering most industrial measurement requirements. Measurement accuracy reaches ±0.5% FS, ensuring high control precision for industrial processes. Display mode uses an LCD screen with real-time digit display of measured value, set value, and output indicator, intuitive and clear. Control output includes relay output (250VAC 3A) and SSR drive signal, supporting flexible matching with different actuators. Power supply supports wide voltage input such as AC220V (50/60Hz) and DC24V, adapting to different power supply environments globally. Operating environment ranges from -10°C to +60°C, humidity 35%–85%RH (non‑condensing), with strong environmental adaptability. Installation method is panel embedded mounting with standard opening size, convenient for equipment cabinet integration. Protection performance features flame‑retardant shell, anti‑interference design, and reverse connection protection, improving overall safety and stability. All parameters comply with international industrial instrument standards, ensuring good compatibility and interchangeability for global users.

Industry Applications & Practical Cases

The TS Three-in-one controller is widely used in many fields that require integrated measurement, display, and control, with remarkable application effects in small and medium‑sized automation equipment. In heating equipment such as mold heaters, small ovens, and sealing machines, it provides stable temperature control to ensure consistent processing quality and improve product yield. In electrical control cabinets, it helps monitor and regulate temperature or humidity, preventing overheating or condensation and extending the service life of internal components. In packaging and printing machinery, it achieves precise control of temperature and tension, improving production efficiency and reducing failure downtime. In small hydraulic and pneumatic systems, it supports pressure or flow signal processing and automatic control, simplifying system configuration. In new energy supporting equipment and laboratory instruments, its high integration and stability provide reliable control support. Many equipment manufacturers have reduced product failure rates, simplified production processes, and improved market competitiveness after using the TS Three-in-one controller. Real customer feedback confirms that this controller effectively reduces system complexity, lowers assembly costs, and provides stable performance for long‑term use.

Commercial Value & Supply Chain Support

Choosing the TS Three-in-one controller brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, and end users. In terms of production cost, its high integration reduces the number of components, lowers wiring and assembly time, and cuts manufacturing and maintenance costs. In terms of equipment performance, stable control improves product quality, reduces defect rates, and enhances brand reputation. For global customers, Suosite Electrical provides strong supply chain assurance: with mature production lines, sufficient inventory, and fast delivery capacity, most standard models can be shipped within 48 hours to meet urgent project schedules. The company supports ODM/OEM customization, allowing personalized customization of appearance, logo, parameters, and functions to meet different brand and project needs. Backed by a professional technical team, Suosite Electrical provides full‑life‑cycle services including pre‑sales selection, on‑site debugging guidance, and after‑sales support. As a national high‑tech enterprise with CE certification and multiple patents, Suosite Electrical continues to invest in R&D and quality control, providing reliable, cost‑effective TS Three-in-one controllers and stable supply services for global industrial automation customers.

Power on

Power-on process

8.8.8/8.8.8 (with all lights on) about 1 second ----, inp /K U0-XX(U0 for version number, XX for time mode) about 2.5 seconds, PSH/PSL OTS hot stamping mode about 2.5 seconds

Key Instructions

The leftmost zeroing count key is pressed for more than 1 second to reset the current count value. When operating parameters, it is used as a shift key

Parameter description

User parameters

Under normal measurement and control conditions, pressing the setting key once will allow you to enter the user control target value setting. Press the setting key again and the setting is complete.

Temperature control parameters

Shape and opening size
