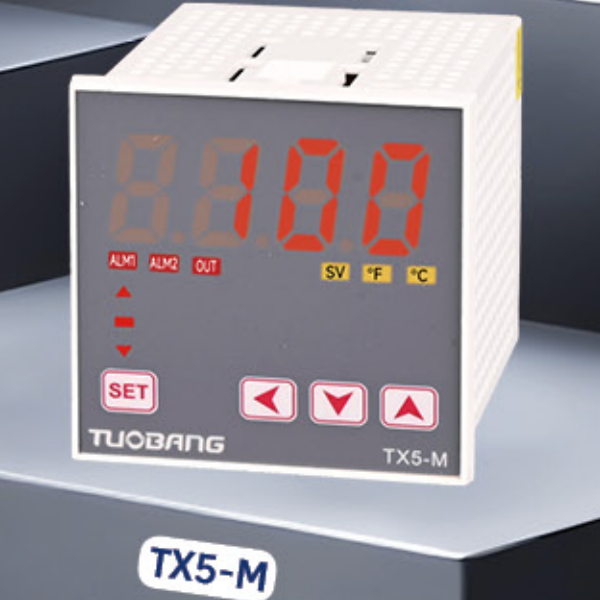

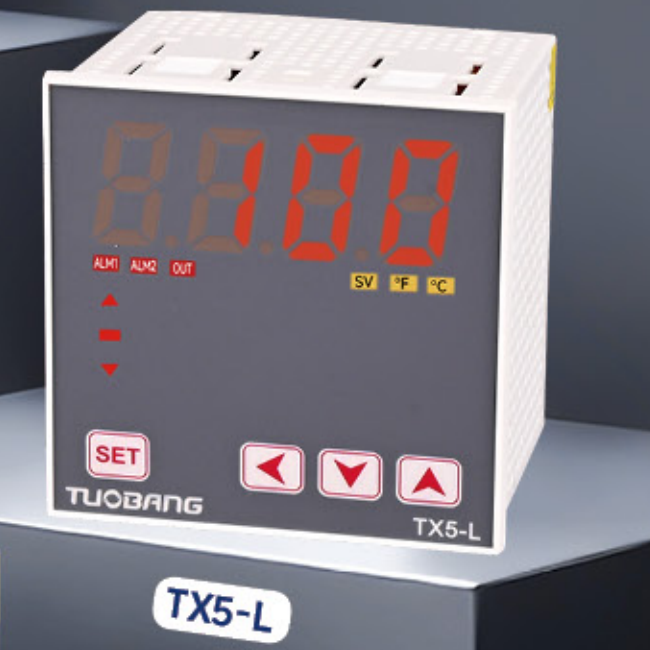

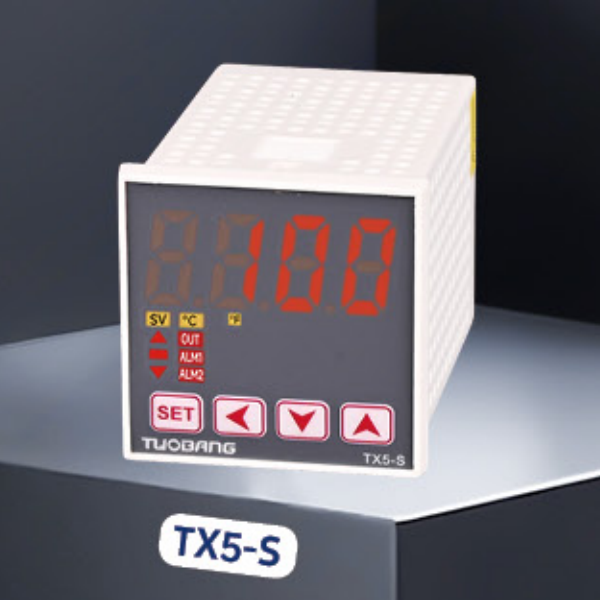

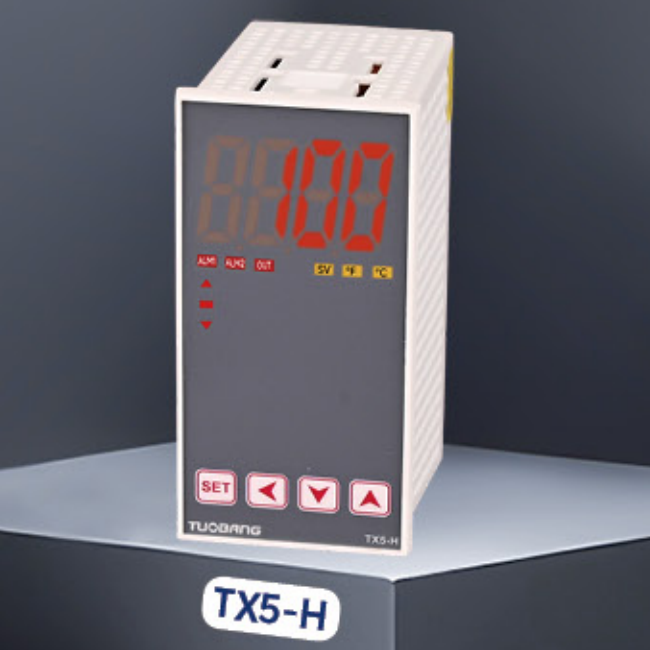

TX5 Single-row temperature controller

Product Introduction

Product Overview & Core Design Concept

The TX5 Single-row Temperature Controller is a compact, high‑reliability industrial temperature control instrument independently developed and produced by Suosite Electrical. Designed for small automation equipment, electrical cabinets, packaging machinery, heating equipment, and daily electrical appliances, this controller adopts a single-row digital display structure to achieve space-saving installation while maintaining stable performance and precise control. With over 10 years of experience in manufacturing temperature controllers and solid-state relays, Suosite Electrical has optimized the TX5 for ease of use, durability, and cost-effectiveness. It supports multiple sensor inputs, flexible control outputs, and wide voltage power supply, making it suitable for mass production matching, maintenance replacement, and on-site temperature control scenarios. Whether used for simple heating control or basic closed-loop regulation, the TX5 provides stable temperature management, reduces failure rates, simplifies operation, and helps users improve equipment efficiency while lowering overall costs.

Key Product Features

The TX5 Single-row Temperature Controller is equipped with practical, user-friendly features tailored for real industrial applications. First, it uses a single-row high-brightness LED digital display with clear digits and high contrast, ensuring easy reading even in low-light factory environments. Second, it supports multiple sensor inputs, including K, J, E, T thermocouples and PT100 RTD, covering most industrial temperature ranges without hardware changes. Third, it provides stable and reliable control outputs, supporting relay output and solid-state relay (SSR) drive to match heaters, contactors, fans, valves, and other actuators. Fourth, it features intelligent temperature control logic with anti-overshoot function, minimizing temperature fluctuation and ensuring process stability. Fifth, it includes complete alarm functions, supporting upper limit, lower limit, and sensor break alarms to protect equipment and improve operational safety. Sixth, it has a power-off memory function that automatically saves all user settings, eliminating the need for reconfiguration after a power outage. Finally, it uses a standard panel mount size with clearly labeled terminals and simple wiring, reducing installation and commissioning time for engineers and technicians.

Technical Advantages & Stability Performance

Backed by Suosite Electrical’s strong R&D capability and strict quality management system, the TX5 Single-row Temperature Controller offers outstanding technical advantages and long-term durability. Its core circuit uses a high-speed industrial microcontroller and high-precision AD sampling, delivering measurement accuracy up to ±0.1% FS, ensuring stable and repeatable readings even in demanding environments. The controller adopts a professional anti-interference design with optical isolation, surge protection, and noise filtering circuits, allowing stable operation in workshops with frequent motor starts, high-power equipment, and complex electromagnetic interference. The optimized control algorithm effectively suppresses temperature overshoot and oscillation, providing fast response and high precision, which significantly improves product yield and process consistency. Every TX5 unit undergoes 100% full-load aging testing, insulation testing, and high/low-temperature testing before shipment, meeting strict industrial quality standards. With a mean time between failures (MTBF) of more than 50,000 hours, the TX5 supports 24/7 uninterrupted operation. Compared with similar products in the market, it offers higher stability, stronger anti-interference performance, longer service life, and better cost-effectiveness, making it a top choice for equipment manufacturers and maintenance teams worldwide.

Technical Parameters & Specifications

To support engineers, purchasers, and maintenance personnel in accurate selection and application, the TX5 Single-row Temperature Controller provides complete and clear technical specifications. Input types: K, J, E, T thermocouples; PT100 RTD (configurable). Measurement range: -50℃ to +1300℃ (depending on the sensor). Control accuracy: ±0.1℃ ~ ±1℃, meeting industrial and commercial temperature control requirements. Display: Single-row 4-digit high-brightness LED digital display. Control output: Relay output (250VAC 3A); optional SSR drive output (12V DC). Alarm output: Upper / lower / sensor break alarm, relay contact output. Power supply: AC85–264V wide voltage input, suitable for global power grids. Operating environment: -10℃ to +60℃, humidity 35%–85%RH (non-condensing). Installation: Panel mount, standard opening size, compatible with most electrical cabinets and equipment panels. Safety: Flame-retardant shell, anti-reverse connection protection, and multiple safety designs. All parameters comply with international industrial standards and CE certification requirements, ensuring high compatibility, safety, and interchangeability for global users.

Industry Applications & Practical Cases

The TX5 Single-row Temperature Controller is widely used across many industries that require stable, precise, and space-saving temperature control, with outstanding performance in various applications. In packaging and plastic machinery, including sealing machines, extruders, and hot stamping equipment, it ensures stable heating temperature, improving product consistency and production efficiency. Many packaging machine manufacturers have reported reduced downtime and higher yield after using TX5 controllers. In small heating and drying equipment such as ovens, heating plates, incubators, and drying cabinets, it provides uniform temperature control to meet food, chemical, and pharmaceutical processing standards. In electrical control cabinets, it prevents overheating and condensation, extending the service life of contactors, drives, and circuit boards. In printing and food machinery, it delivers reliable temperature control to ensure stable production processes. It is also widely used in small heating equipment, heat treatment devices, agricultural equipment, and the maintenance market as a high-quality replacement part. Real customer feedback confirms that the TX5 series effectively reduces failure rates, simplifies operation, lowers maintenance costs, and significantly improves equipment stability and service life.

Commercial Value & Supply Chain Support

Choosing the TX5 Single-row Temperature Controller brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, distributors, and end users. Stable and precise temperature control improves product quality, reduces defective rates, saves energy consumption, and lowers production costs. The compact single-row design, easy wiring, and user-friendly operation reduce assembly time, training costs, and human error. For equipment manufacturers, integrating the TX5 series enhances product reliability and brand reputation, helping expand domestic and international markets. Suosite Electrical provides strong supply chain assurance: mature production lines, sufficient inventory, and fast delivery, with most standard models shipped within 48 hours to meet urgent project schedules. The company supports ODM/OEM customization, including logo, parameters, functions, and packaging, to meet diverse brand and project requirements. Backed by a professional technical team, Suosite Electrical offers full-life-cycle services including pre-sales selection, on-site debugging guidance, and after-sales support. As a national high-tech enterprise with CE certification and multiple patents, Suosite Electrical maintains strict quality control and continuous R&D investment. The TX5 series provides stable, cost-effective, and reliable temperature control solutions for global industrial customers, backed by consistent quality and long-term supply capacity.

Model meaning

Main characteristics

By adopting the newly developed PID control algorithm and the 100ms high-speed sampling function, ideal temperature control can be achieved

It is equipped with both Relay output and SSR output simultaneously

Phase control and period control (SSRP function) (patented) can be achieved through SSR drive output

It adopts a large-sized display screen, significantly enhancing visibility

Compact design saves installation space

It is reduced by approximately 38% compared to the existing product (depth benchmark)

Set the temperature (SV) as the reference and display the deviation function of the current temperature (PV)

Usage environment

Specification

Shape and opening size
