TUOBANG Digital PID Temperature Controller TEL96-9001 AC220V/380V Universal Mechanical Knob K/E Thermostat Plastic OEM/ODM
The TUOBANG TEL96-9001 Digital PID Temperature Controller is a high‑stability, universal‑voltage industrial temperature control unit independently developed and produced by Suosite Electrical.
- Overview
- Recommended Products
Product Introduction
Product Overview & Core Application Positioning
The TUOBANG TEL96-9001 Digital PID Temperature Controller is a high‑stability, universal‑voltage industrial temperature control unit independently developed and produced by Suosite Electrical. It is designed for heating equipment, packaging machinery, plastic machinery, drying ovens, and small industrial automation systems that require reliable temperature control and simple operation. Adopting a mechanical knob adjustment design and high‑performance PID algorithm, this controller combines intuitive operation with precise temperature control. It supports both AC220V and AC380V power input, K/E type thermocouple sensing, and provides stable relay output to drive heaters, contactors, and other heating devices. With over 10 years of experience in manufacturing temperature controllers and solid‑state relays, Suosite Electrical has built the TEL96‑9001 for durability, stability, and ease of use. The product is widely used in mass production lines, maintenance markets, and equipment retrofits worldwide. It features a standard 96×96mm panel size, clear digital display, strong anti‑interference ability, and long service life, making it an ideal choice for equipment manufacturers, system integrators, and maintenance professionals seeking cost‑effective and reliable temperature control solutions.
Key Product Features
The TUOBANG TEL96-9001 temperature controller is equipped with practical, user‑friendly features that ensure stable performance and easy operation in real industrial environments.
First, it uses a precision mechanical rotary knob for temperature setting, with clear scale indication and smooth rotation, supporting stepless adjustment and avoiding misoperation caused by complex button menus.
Second, it has a high‑brightness LED digital display that clearly shows measured temperature and set value, ensuring excellent visibility even in low‑light factory workshops.
Third, it supports universal voltage input (AC220V/380V), adapting to different power supply environments in global factories without additional transformers.
Fourth, it is compatible with K/E type thermocouples, covering most industrial temperature measurement requirements and providing strong versatility for various heating scenarios.
Fifth, it adopts advanced PID control algorithm with anti‑overshoot and self‑optimization functions, effectively reducing temperature fluctuation and ensuring stable and uniform heating.
Sixth, it provides stable relay output with strong load capacity, capable of directly driving heaters, contactors, and solid‑state relays for reliable long‑term operation.
Seventh, it features power‑off memory function that automatically saves all settings, eliminating the need for reconfiguration after a power failure.

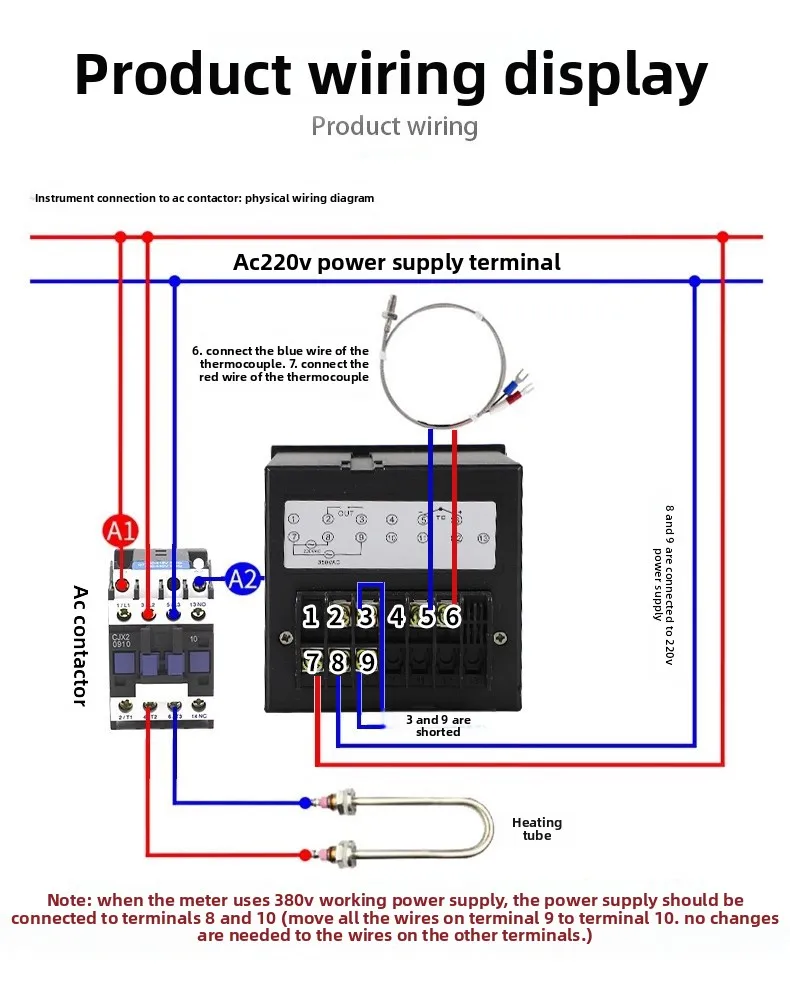

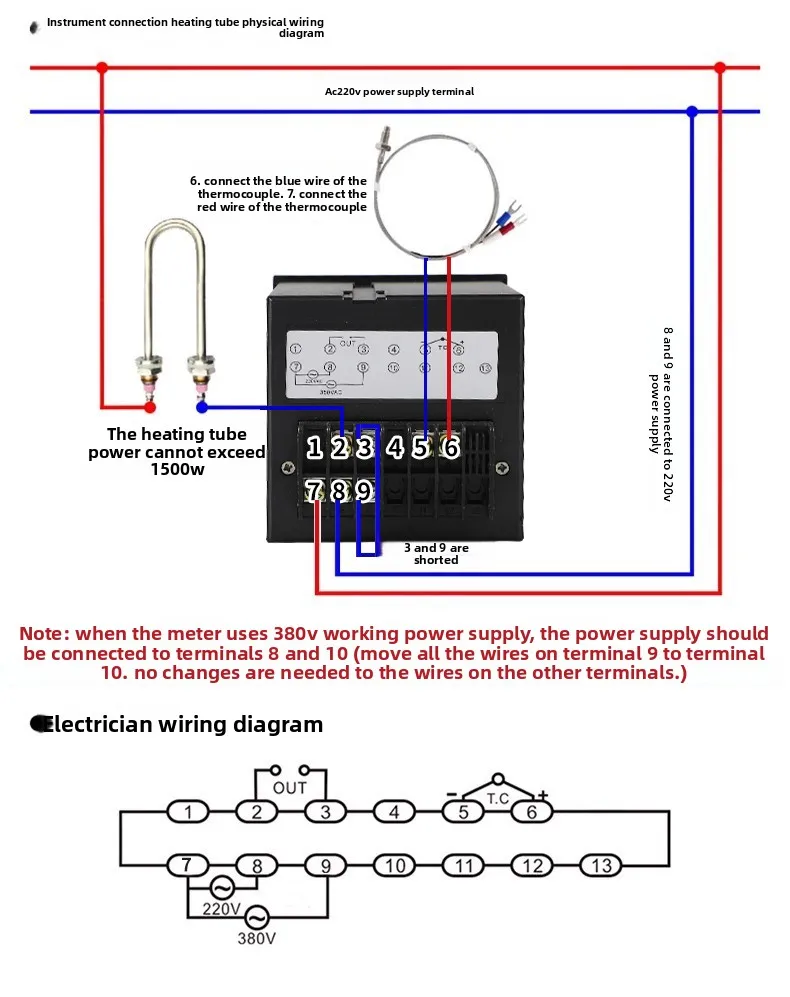

Finally, it uses a standard 96×96mm panel mounting structure with simple wiring terminals, enabling fast installation and commissioning, which significantly reduces on‑site labor time.
Technical Advantages & Stability Performance
Backed by Suosite Electrical’s strong R&D capability and strict quality control system, the TUOBANG TEL96-9001 series offers outstanding technical advantages and long‑term reliability.

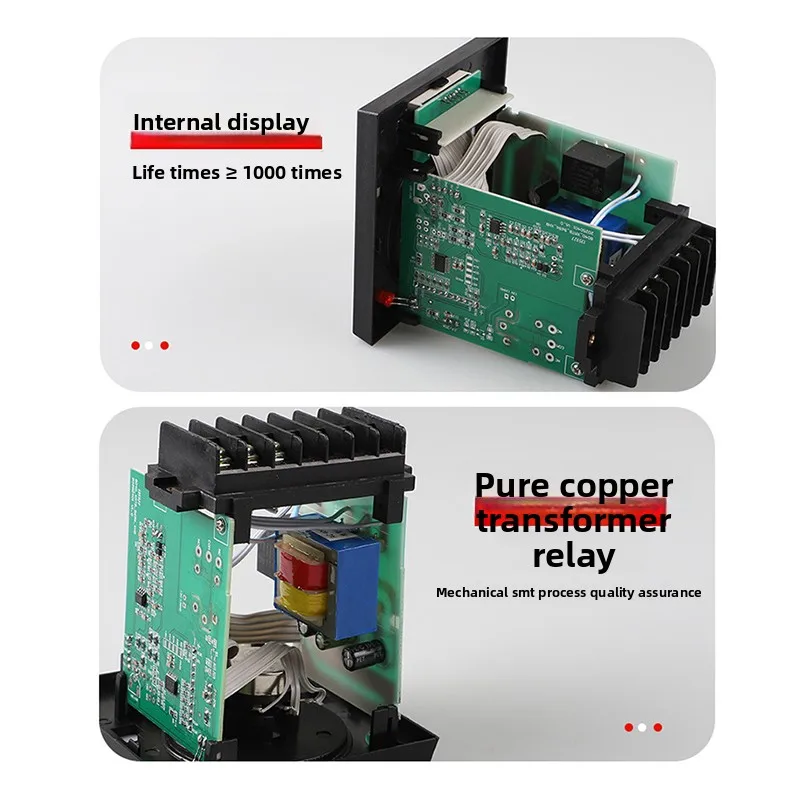

Its core control circuit uses a high‑speed industrial microcontroller and high‑precision AD sampling, delivering measurement accuracy up to ±0.1℃ FS, ensuring stable and repeatable readings even in demanding environments.
The controller adopts a professional anti‑interference hardware design, including optical isolation, surge protection, and noise filtering circuits, allowing stable operation in workshops with frequent motor starts, high‑power equipment, and complex electromagnetic interference.
The optimized PID algorithm effectively suppresses temperature overshoot and oscillation, providing fast response and high precision, which significantly improves product yield and process consistency.
The high‑quality mechanical knob supports more than 10,000 adjustment cycles without failure, ensuring long‑term durability.

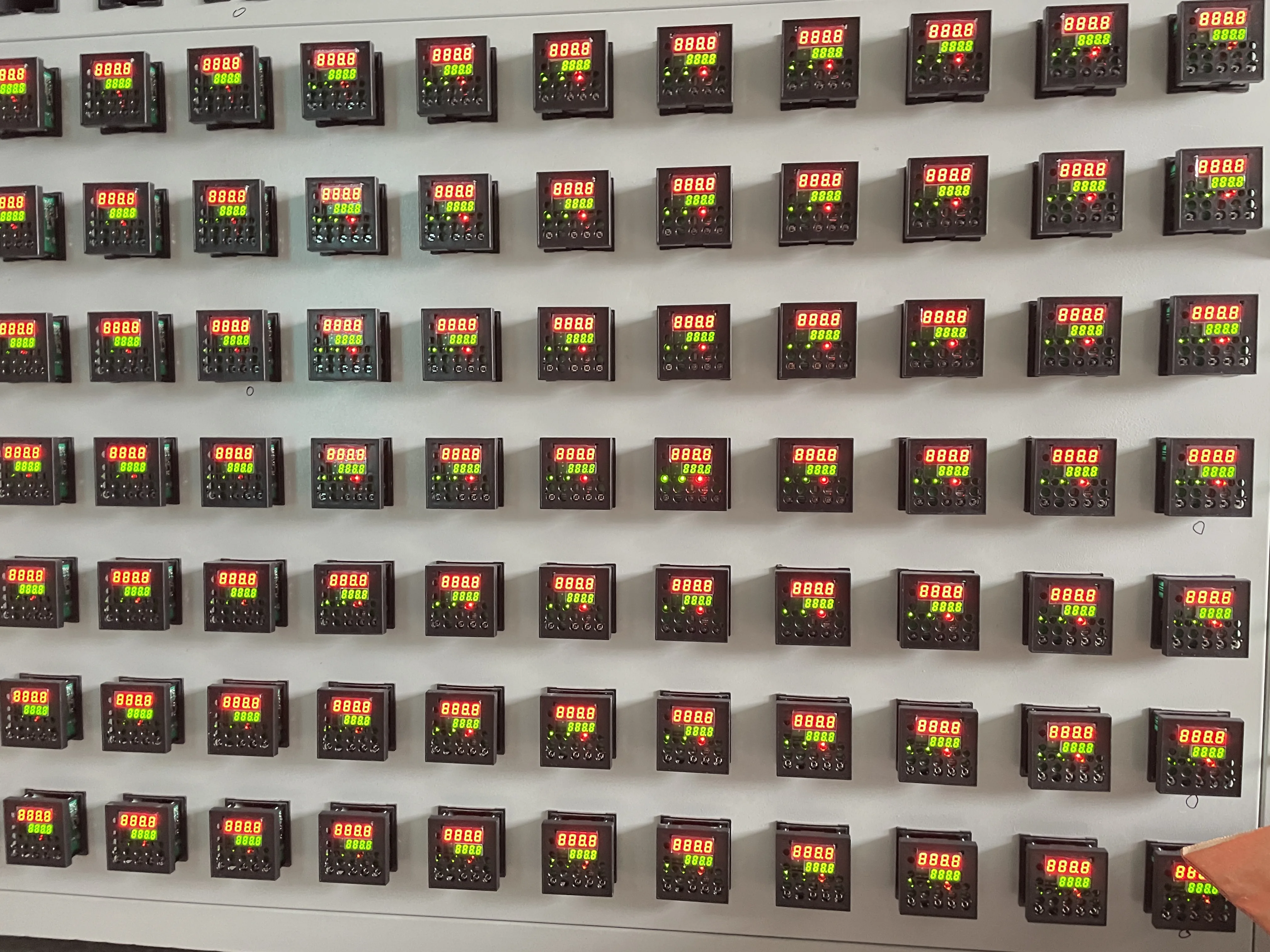

Every unit undergoes 100% full‑load aging testing, insulation testing, and high/low‑temperature testing before shipment, meeting strict industrial quality standards.
With a mean time between failures (MTBF) of more than 50,000 hours, the TEL96‑9001 supports 24/7 uninterrupted operation.
Compared with similar products in the market, it offers higher stability, stronger anti‑interference performance, longer service life, and better cost‑effectiveness, making it a top choice for equipment manufacturers and maintenance teams worldwide.
Technical Parameters & Specifications
To support engineers, purchasers, and maintenance personnel in accurate selection and application, the TUOBANG TEL96-9001 provides complete and clear technical specifications.
Model: TEL96-9001
Control type: Digital PID temperature controller
Adjustment method: Mechanical rotary knob stepless adjustment
Display: 4-digit high-brightness LED digital display
Input sensor: K type, E type thermocouple
Measurement range: 0–400℃ (customizable according to requirements)
Control accuracy: ±0.1℃ ~ ±1℃
Power supply: Universal AC220V / AC380V (50/60Hz)
Control output: Relay output (250VAC 3A–5A)
Operating environment: -10℃ to +60℃, humidity 35%–85%RH (non‑condensing)
Installation: Panel mount, standard size 96×96mm
Shell material: High-strength flame-retardant plastic
Safety protection: Overcurrent protection, reverse connection protection, anti-interference protection
All parameters comply with international industrial standards and CE certification requirements, ensuring high compatibility, safety, and interchangeability for global users.
Industry Applications & Practical Cases
The TUOBANG TEL96-9001 Digital PID Temperature Controller is widely used across many industries that require stable, precise, and easy‑to‑operate temperature control, with outstanding performance in various applications.
In packaging and plastic machinery, including sealing machines, extruders, and hot stamping equipment, it ensures stable heating temperature, improving product consistency and production efficiency. Many packaging machine manufacturers have reported reduced downtime and higher yield after using TEL96‑9001 controllers.
In heating and drying equipment such as small ovens, drying cabinets, heating plates, and incubators, it provides uniform temperature control to meet food, chemical, and pharmaceutical processing standards.
In plastic injection and molding machines, it delivers reliable temperature control for barrels and molds, ensuring stable material melting and high product quality.
In electrical control cabinets, it prevents overheating and condensation, extending the service life of contactors, drives, and circuit boards.
It is also widely used in food machinery, printing equipment, small heating machines, agricultural equipment, and the maintenance market as a high‑quality replacement part.
Real customer feedback confirms that the TEL96‑9001 series effectively reduces failure rates, simplifies operation, lowers maintenance costs, and significantly improves equipment stability and service life.
Commercial Value & Supply Chain Support
Choosing the TUOBANG TEL96-9001 temperature controller brings significant commercial value and reliable supply support to equipment manufacturers, system integrators, distributors, and end users.
Stable and precise temperature control improves product quality, reduces defective rates, saves energy consumption, and lowers production costs. The mechanical knob operation reduces training costs and operator errors, while the easy wiring and standard panel size cut assembly time and labor costs.
For equipment manufacturers, integrating the TEL96‑9001 series enhances product reliability and brand reputation, helping expand domestic and international markets.
Suosite Electrical provides strong supply chain assurance: mature production lines, sufficient inventory, and fast delivery, with most standard models shipped within 48 hours to meet urgent project schedules.
The company supports OEM/ODM customization, including logo, scale markings, parameters, output types, and packaging, to meet diverse brand and project requirements.
Backed by a professional technical team, Suosite Electrical offers full‑life‑cycle services including pre‑sales selection, on‑site debugging guidance, and after‑sales support.
As a national high‑tech enterprise with CE certification and multiple patents, Suosite Electrical maintains strict quality control and continuous R&D investment.
The TUOBANG TEL96‑9001 series provides stable, cost‑effective, and reliable temperature control solutions for global industrial customers, backed by consistent quality and long‑term supply capacity.
About Product
Highlight
Wide Temperature Range: Operates efficiently between 0-400°C.
High Precision: Measures temperature down to 0.5°C resolution.
Relay Outputs: Supports E-type and K-type relays for versatile applications.
ODM/OEM Support: Customizable solutions for various industries.
